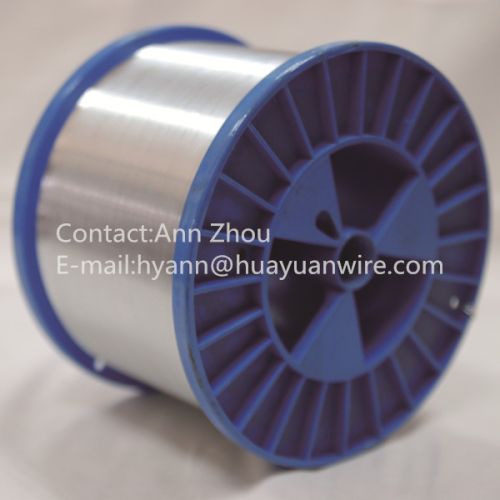

Electro Galvanized Iron Wire, Brand Name : HUA YUAN

We are offering electro galvanized iron wire,
electro galvanized iron wire
size:0.24mm-5.00mm;
tensile strength: 290-1200mm;
zinc coating: 5-120 gm2.
　(1) quality : meet gbt 343 standard and other requirements of relevant standards .
　(2) zinc coating: meet gbt 15393 standard and other requirements of relevant standards .
　(3) raw material : wire rod ——1006 , 1008 , 1018 , q195 ,etc, and zinc with 99.995% purity.
　(4) tensile strength range
　
size (mm) tensile strength (mpa)
0.24-1.60 290-550
1.61-5.00 400-1200
　(5) application : used in detonator lead , artware , redrawing , toy , etc.
　(6) packing
size (mm) coil size
(inch) spool packing big coil packing
id (mm) od (mm)
0.23-0.45 8 inch 1-100kgspool
0.46-0.60 8 ,12 inch 1-100kgspool
0.61-1.60 12,14,16 inch 1-100kgspool 250-400 400-770
1.61-5.00 450 800
　(7) zinc coating
　meet gbt 15393 standard
size (mm) weight of zinc-coating ( gm2 )
a ab b c d e f
a1 b2
≤0.25 18 15 12 5
>0.25-0.40 25 20 12 5
>0.40-0.50 25 20 15 8
>0.50-0.60 25 20 15 8
>0.60-0.80 55 20 15 10
>0.80-1.20 60 25 18 10
>1.20-1.60 65 25 18 12
>1.60-1.80 100 70 40 30 20
>1.80-2.20 105 80 50 40 20
>2.20-2.50 110 80 55 40 25
>2.50-3.00 120 90 70 45 25
>3.00-4.00 100 85 60 30
>4.00-5.00 110 95 70 40.
