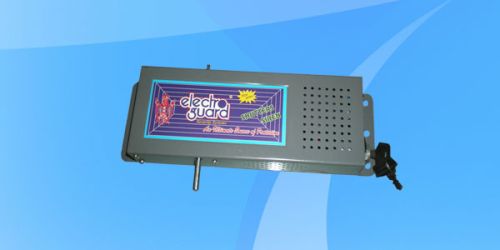

Electro Guard Shutter Security System

an unauthorized entry in to the bungalows, banks and warehouses by breaking open the shutter is the most common modus operandi noticed in the case of theft, loot, robbery and riots. Till very recently we had no direct solution for this and we had to depend entirely on the security guard, as we all know due to it's centralized nature & dependence on individuals such security systems has never been so effective, protection of shops, godown etc. Has always been a point of great worry & pain for the owners but now you have hundred percent solution of this problem i.e. Now you have "electro guard shutter security system" the only one of it's own kind in india.

"electro guard shutter siren" is a typically designed tailor made safety device for the total protection of unauthorized entry into your shops, godown etc. By breaking open the shutter, even by few inches. Here are some salient features of this tailor made product "security system shutter siren".

where this system is going to be fitted?

this system will be fitted by our trained technician. It is fitted inner side of your shutter in the bottom (where your center locks has been fitted).

can it be fitted in any type of shutters available in the market?

yes, it will. “electro guard shutter alarm system” is a typically tailor made safety device. After a year of research and study all type of shutters available in the market, we have made this product. So that it can be fitted in all type and model of shutters available in the market.

what about it’s wiring and electric connection?

“electro guard shutter siren system” totally gives us freedom from all hassle of electric wiring. This system totally works on self battery. So, you don’t need to worry whether there is an electric cut-off or if somebody intensely cuts your electric connection and also gives you totally freedom from the yearly wiring maintenance cost.

what is its yearly maintenance cost?

“electro guard shutter safety system” works totally on its self battery (12 batteries of 1.5 volts) and its cost comes near about 75 rupees approx.. (this is less costly than your monthly tea expense of your firm). Basically its batteries work for 1 ½ yrs. Approx but we always advice to change it every year for better performance. If once its siren signal used continuously for three to four hours in a single time, then you have to replace the batteries. instead a loss of 75 rupees (approx. Cost of 12 batteries of 1.5 volts) is a profit for not getting a loss of lakhs of rupees in theft, loot or burglary.

technical specification

the system is installed from inside at the pet lock of the shutter with help of four nut and bolts.
at the time of closing. We have to pull-down the shutter and make the system activated by taking out the keys. Please check the system by pressing indictor switch.
after putting down the shutter. We have to lock the shutter from outside. The ''plunger'' provided with the system gets fully inserted by the bottom surface and makes the system activated.
now, if any unauthorized entry is made by any means and the shutter is lifted even by 2 inches, the plunger is set free and the siren gets blown within 15 seconds and goes on for at least 3 hours until it is switched off by its own key.

• 30.6 cm length 10.3 cm width 4.8 cm height
• weight 1.5 kg with packing
• 110 db sound
• yp speaker, 3 watts. 4 ohms
• "minda" lock
• components : a) resistance philips/keltron b) capacitors - keltron c) i.c motorola/national/ hitachi d) transistors philips / keltron
• printed circuit board paper phinolic /glass epoxy with green masking conductive thickness of tracks 35 microns.
• 12 nos. Of r6 ( um-3 dg) 1.5 volts. "batteries".
• fitted with brass screws.
• installed with chrome platted washers and nut bolts.
• zinc platted plunger of 5cms length.

salient features

• 30 seconds time delay facility for the entry negligible power consumption.
• temper proof system with safety lock.
• exclusive design for door.
• cost effective-priceless yet thoughtfully priced.
• easy operation.
• one year guarantee.
