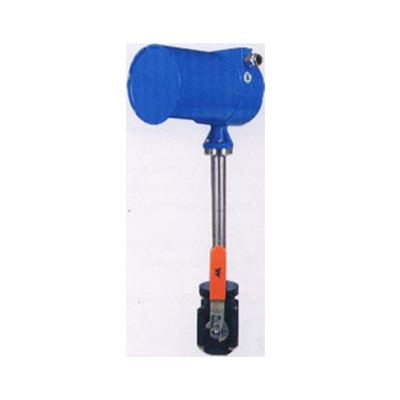

Electro Magnetic Flow Meter

Available Features :

• Based on Faradays law of electromagnetic induction, Suitable for pipe sizes of diameters 100 mm & above, With or without Integral Transmitter, Use of Isolating Ball Valve and Pressure Seal arrangement permits ease of mechanical Insertion and removal without disturbing the flow, Absolute zero stability and noise elimination due to pulse D.C. excitation, Measurement independent of liquid properties, Optional inbuilt potentiometer provides full scale flow rate adjustment, Negligible pressure loss, Maintenance free design due to absence of any moving parts, Display of flow rate directly in user specified engineering units.

Operating Range:

• Water Supply Networks, Chemical and Process Industries, Pharmaceutical Industry, Waste Water Management, Sugar, Food and Beverages industries, Effluent Treatment Plants.

POWERPOINT make Series 6500 is a new range of Bipolar Pulsed DC Insertion Type Electromagnetic Flow meter. It is suitable for pipes with nominal diameters of 100 mm & above. The Flow meter Is based on Faradays law of Electromagnetic Induction. Series 6500 has excellent accuracy and flow range ability within its class. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.
