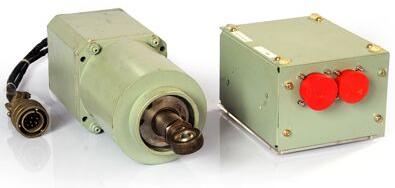

ELECTRO MECHANICAL LINEAR ACTUATOR

Get Latest Price

Speed At Rated Load165 mm/second
Weight6.45 kg
Stroke± 30 mm
Total Time of Operation500 second
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

SATTVA Aero Accessories & Systems Private Limited

Begur Road, Bangalore, Karnataka

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Speed At Rated Load165 mm/second
Feedback SensorsTacho and LVDT
Total Time of Operation500 second
Weight6.45 kg
Peak Load2200 kgf
Stroke± 30 mm
Rated Load1100 kgf at rated voltage
Size102 x 106 x 270 mm excluding controller
Rated Voltage80 ± 5 VDC
Stall Load3000 kgf

EMLA is a position controlled linear actuator to operate the control surface of a missile, it can also be used for gun position control. The unit is powered by a small sized BLDC motor which has high rated power of 3kW.
The unit is capable of operating at a speed of 165mm/sec, against the rated load of 1100kgs. It has got a stroke of ±30mm. The unit operates at a nominal voltage of 80VDC.
