Electro Optic Search Tracking System

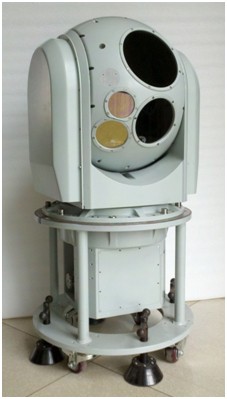

We offer ship-borne electro optic search and tracking system s3500.
S3500 system is equipped with a high performance thermal camera, tv camera and laser range finder, enables search target at daynight, as well as aiming, recognition, tracking, ranging target, real-time providing target angle, angular speed, vi (videoimage) etc information.
Function area
 isolate carrier (ship disturbance, stabilized the los (line of sight)
 daynight observation, search and aiming target
 daynight detection, recognition and identification on specified target
 manualauto tracking target
 ranging target
 report captured target angular and ranging data relative to reference axis
 report captured target angular speed
 system self-checking and report self-checking result.
technical parameters
thermal camera
detector 320×256 hgcdte cooled fpa
spectral band 3.7μm~4.8μm
fov wfov: 7.3°×5.8° nfov: 1.8°×1.4°
fov switching time ≤1s
electronic zoom 2×
tv camera
detector 752×582, 13″ whiteblack ccd
fov: 18°×13.5°~1°×0.75° continuous zoom
luminance range 200lx~105lx
laser range finder
wavelength 1.06μm
laser emission collimated angle ≤0.8mrad
ranging 300m~20km (visibility 23km, to 15m×10m target)
measurement accuracy ≤±5m
repeat frequency 5hz
system paremeters
stabilization accuracy ≤0.2mrad (1σ)
turret direction range azimuth: ±160°(0° is bow direction);
pitch: -20°~+75°
turret maximum angle speed azimuth: >50°s; pitch: >50°s
turret maximum acceleration >50°s 2; pitch: >50°s 2
video signal format: ccir pal standard bw
physical parameters
dimension turret: ≤φ400×750;
control box: 500 mm x 230 mm x 87 mm
weight turret: ≤120kg (including electronic box and moving support); control box: ≤ 5kg.
