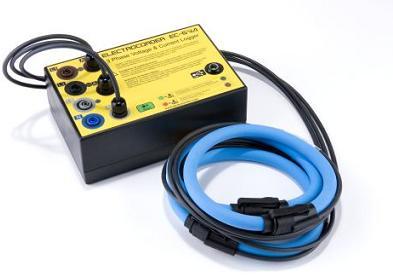

Electrocorder Current Logger

The electrocorder range is designed to allow electrical distribution companies to cost effectively monitor single and three phase loads. this product will allow voltage and load problems to be highlighted quickly for further investigation.
setting up the electrocorder ec-6va is easy, suitable for semi-technical staff. Using the supplied (free) windows software, electrosoft; the location’s details are input to the unit’s memory and stored. Electrosoft will then print documentation allowing users to record andor pass on delivery instructions to colleagues. All data is also stored in a database of dispatches and returns, which tracks the whereabouts of all units.
why is the electrocorder better than other similarly priced competitors? the electrocorder range use a constant sampling technique, unlike the single reading of competitors. When the loggers start to record, they sample every channel 16 times per cycle, a cycle is 16ms at 60hz and 20ms at 50hz. At the end of each averaging period, 3 quantities are saved for each channel, the true rms average, the max, which is the highest cycle value during the period and the min, lowest cycle value. This means that it will record all the peaks and troughs which are one cycle or longer.
v & I logger (3 volts, 3 current channels)
