We bring forth Electrofusion IC Reducer for our valued customers. Electrofusion IC Reducer, which we offer, is made from Polyethylene, which ensures thermal stability, weatherability, and high impact resistant. Electrofusion IC Reducer is sturdy enough to withstand high pressure. Electrofusion IC Reducer is strong, precisely designed, and built to last.
| Standard | EN 1555 Part 3 | |
|---|---|---|
| Product marking | For example | |
| d 63-32 | (Nominal dia.) | |
| PE 100 | (Material) | |
| SDR 11 | (SDR rating) | |
| 11/01 | (Batch No.) | |
| Fuse 70 sec | (Fusion time) | |
| Cool 7 Min | (Cooling time) | |
| Identification system | Product Batch Number | |
| Terminal pin size | 4.0/4.7 mm | |
| Pin material | brass | |

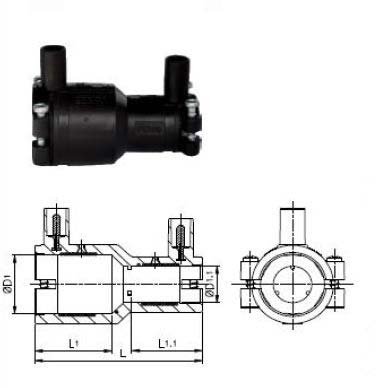

Nominal diameter dn | Inner Dia. Mm | Item Code No. 4.0 Pin | Item code No. 4.7 pin | Depth of panetration mm | Lenght mm L | Fusion time sec. | Cooling time Min | ||||
| d1 | d1.1 | ||||||||||
Min. | Max. | Min. | Max. | L1 | L1-1 | ||||||
32-20 | 32, 50 | 32, 90 | 20, 40 | 20, 60 | 2170602010101 | 217060202010101 | 41 | 39, 5 | 82 + 2 | 34 | 4 |
63-32 | 63, 70 | 64, 10 | 32, 50 | 32, 90 | 217060501010101 | 217060502010101 | 48 | 40, 5 | 106 + 2 | 47 | 7 |
| Application with PE 80 Pipes | 20 | 25 | 32 | 63 |
|---|---|---|---|---|
| SDR 11 (PN 12.5) | √ | √ | √ | √ |
| SDR 13.6 (PN 10) | - | - | - | √ |
| SDR 17 / Sdr 17.6 (PN8) | - | - | - | √ |
| SDR 21 (PN 6) | - | - | - | √ |
| SDR 26 (PN 5) | - | - | - | - |
| Application with PE 100 Pipes | 20 | 25 | 32 | 63 |
| SDR 11 (PN 16) | √ | √ | √ | √ |
| SDR 13.6 (PN 12.5) | - | - | - | √ |
| SDR 17 / SDR 17.6 (PN 10) | - | - | - | √ |
| SDR 21 (PN 8) | - | - | - | √ |
| SDR 26 (PN 6) | - | - | - | √ |
| Compatible with pipes | Pe 80 & PE 100 Conforming to ISO : 4437, IS : 14885, Din : 8074, Gis : Pl 2/2 & 1/8 for gas and ISO : 4427-2, IS : 4984, EN : 12201-2 for water | |||
