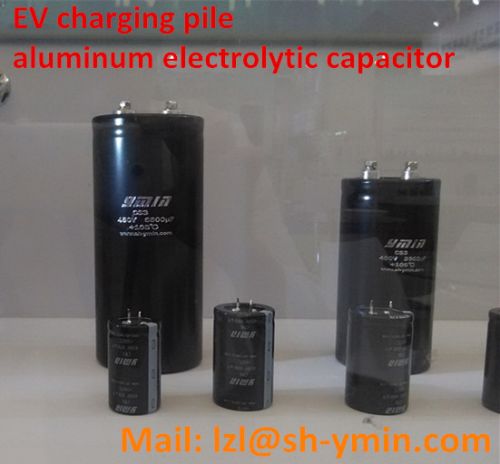

Electrolytic Capacitor, Brand Name : YMIN for EV charging pile

Through more than six years` research and development, we,shanghai yongming to be the first company in china to launch aluminum electrolytic capacitor special for charging pile. From small power to high power and different requirements, it is mainly divided into six series: lkz, cn3, cn6, cw3, cw6, cs3.
2. Characteristic of each series
lkz: 10000hours, -55℃ to 105℃,10v to 600v,2.2uf to 6800uf.
Cn3: 3000hours,-40℃ to 85℃,350v to 500v,47uf to 1000uf.
Cn6: 6000hours,-40℃ to 85℃,350v to 500v,68uf to 1000uf.
Cw3: 3000hours,-40℃ to 105℃,300v to 500v,47uf to 1000uf.
Cw6: 6000hours,-40℃ to 105℃,350v to 500v,82uf to 1000uf.
Cs3: 3000hours,-40℃ to 105℃,200v to 500v,1000uf to 33000uf.
Different series for different charging points
1.for miniature small power charging points, choose lkz series.
2.for normal temperature environment, light load (general use within 70% load), choose cn3 series
3.for normal temperature environment, heavy load (generally use in more than 70% load), choose cn6 series.
4.harsh conditions (such as the summer outdoor, plateau large temperature difference, etc.), light load (general use within 70% load), choose cw3 series
5.harsh conditions (such as the summer outdoor, plateau large temperature difference, etc.), heavy load (generally use in more than 70% load or long time continuous use) ,choose cw6 series
6.for low esr, large ripple current charging pile, choose cs3 series.
Our advantages compare with competitors:
longer life,
higher reliable,
less capacitance change after the life test,
better characteristics in low temperature.
contact person: miss vickie via mail: lzl(at)sh-ymin(dot)com
