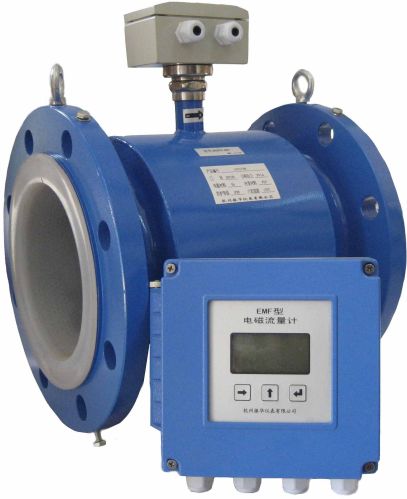

Contact SupplierWe are offering electromagnetic flow meter-2.
Current output 0~20ma
display 4-lines english lcd display to show the forward and positive flow,the instant flow,the percentage flow and the flow velocity etc.
Frequency/pulse output "optional full-scale frequency or equivalent pulse output,the
max frequency value is 2khz"
protection ip65
precision ±0.2%,±0.3%,±0.5%
power supply 85v~265vac or 24vdc
communication rs485(modbus-rtu,modbus-ascii)hart
dn dn10a-dn2000(mm)
rated pressure 0.6mpa ~4.0mpa (the requirements is decided by size)
electrode 316l, hb, hc, ti, ta,pt
lining fep,ne,pu,ptfe, pfa
shell carbon steel
medium temp -40~180℃
protection ip65,ip67,ip68
flange gb9119 or by requirement
