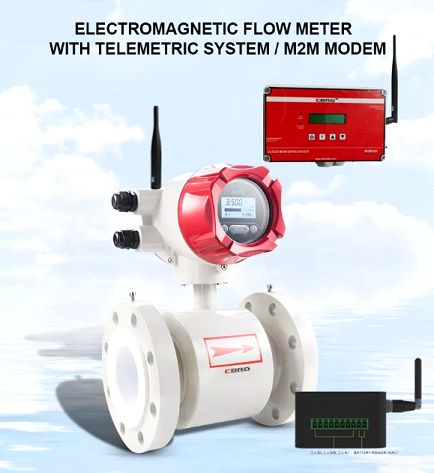

    Electromagnetic Flow Meter With Telemetry System

    • MOQ10 Piece
    • Brand NameCBRO
    • CommunicationRS485(default) / RS 232(optional) / GPRS / GSM / WIFI
    • Transmitter MountingRemote / Integral
    • Operating PressureUp to DN 80 – PN 40, From DN 100 to DN 200 – PN 16, From DN 250 to DN 350 – PN 10
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 5 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 27AHYPC3352L1ZV

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Brand NameCBRO
    • Display Type16 characters x 2 rows LCD Display for instantaneous Flow rate, Totaliser, Engg. units
    • Velocity Range2.5 m/s to 10 m/s
    • Transmitter MountingRemote / Integral
    • Liner MaterialHR, PTFE, PFA, Neoprene, Rubber , Hard Rubber
    • Flange StandardANSI / DIN / BS 10 E / BS 10 F / IS
    • CommunicationRS485(default) / RS 232(optional) / GPRS / GSM / WIFI
    • Line sizes15 mm to 1000 mm
    • Accuracy±0.5 % +-(1mm/sec) of Actual Flow Rate between 100 % to 10 % of calibrated range
    • Flange / Coil Housing MOCMS / CS / SS 316 / SS 304
    • Types of TransmittersIntegral / Remote Wall Mounted
    • Operating TemperatureHR : 0 – 90 ºC / PTFE : 0 – 150 ºC / PFA : 0 – 200 ºC / Neoprene : 0 – 90 ºC
    • Electrode MOCSS316, Hastalloy C, TAN, TI
    • Operating PressureUp to DN 80 – PN 40, From DN 100 to DN 200 – PN 16, From DN 250 to DN 350 – PN 10

    CBRO Make Digital Flow Meter with Telemetry System as per the latest Central Groundwater Authority(CGWA) Guidelines. Also, this Digital Flow Meter with a Telemetry system is easy to install and user-friendly. It provides an IoT platform for water meters which is suitable for data acquisition from any remote location. Also, its Cloud platform having Real-Time Dashboard that allows viewing all analytical parameters as per CGWA guidelines.



    Alerts or Notifications during parameter exceedance will be received through Email and SMS.



    Features:

    • Digital display for instantaneous flow reading.
    • Followed by CGWA, CGWB, and CSWA/B guidelines.
    • Remotely accessible because it provides an IOT platform for the water flow meters.
    • Tampering Alert on Dashboard.
    • Power failure Indication.
    • Backup of data as per request.
    • No Pressure drop in flow.



    Two variants are available:

    • Electromagnetic Flowmeter with Inbuilt Telemetry System
    • Electromagnetic Flowmeter with External Telemetry System



    Applications:

    • Steel & Aluminum
    • ETPs & STPs
    • Sugar & Distilleries
    • Paper & Pulp
    • Food & Drug
    • Petrochemical
    • Fertilizer and Chemical
    • Pharmaceutical
