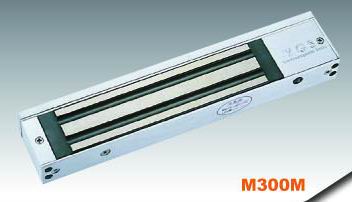

Electromagnetic Lock

We offer m300m electromagnetic lock (650lbs).
Features:
1. Fail safe: locked when power up.
2. Magnet size:238×25×48mm.
3. Armature plate:185×12×38mm.
4. Holding force:300kg(650lbs).
5. Current drain: 320ma/12vdc, 210ma/24vdc.
6. Opening mode: 90 degree swinging door.
7. Safety function: built-in voltage spiker suppressor to protect the lock body and equipments;
8. Special appearance finishing: aluminum anodic oxidation, lock body and armature have been done chemical plating anticorrosion finished.
9. Hanging installation/surface mounted.
9. Suitable for wooden door, metal door, fire proof door.
10.unit weight (approx.):1.9kg
function description:
m300m: with led light;
m300my: adjustable time delay;
m300mc: 12/24v exchange;
m300ml: with signal output;
m300myl: with signal output and time delay.
