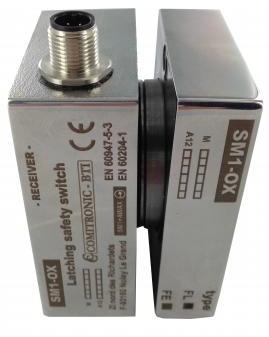

Electromagnetic Safety Switch

Decoding by „acotom®2 process
static outputs to be monitored by the awax
single (ref. Sm2 1e) or double (ref. Sm2 2e) built-in m12 connector
requires a safety relay for the safety monitoring
locked when un-energised
technical datas :
power supply: 24v dc; +10%-15%
current consumption: 500ma
safety outputs: 2 static output ; 40v acdc; 400ma
auxiliary output:
coding principle : acotom®2
holding force : 40 dan
temperature : -25°c to +60°c
shock stress : 30 g 11 ms
max. Switching frequency: 10-55 hz, 1,5 mm
protection class: ip54
mttfddc : 300 years 90%
housing: stainless steel 316l
electromagnets made in metal
connection: built-in m12; 8-pin
standards: en60947-5-3, en13849-1, en55022, iso18000-2 en61000-6-2; 012006; en61000-6-4; 032007
electromagnetic immunity : acc. To iec 61000-6-2, acc. To iec 61000-6-4
weight emitterreceiver: 800g 1200g
safety classification:
acc. To en iso 13849-1 : 1 switch up to ple cat.4 serie wiring possible with 30 switches on a safety relay, up to ple cat.3
certification: ce
requires a safety relay for the safety monitoring
locked when energised
technical datas :
power supply: 24v acdc; +10%-15%
current consumption: 500ma
safety outputs: 2 static output ; 40v acdc; 400ma
auxiliary output:
coding principle : acotom®2
holding force : 40 dan
temperature : -25°c to +60°c
shock stress : 30 g 11 ms
max. Switching frequency: 10-55 hz, 1,5 mm
protection class: ip54
mttfddc : 300 years 90%
housing: stainless steel 316l
connection: built-in m12; 8-pin
standards: en60947-5-3, en13849-1, en55022, iso18000-2 en61000-6-2; 012006; en61000-6-4; 032007
electromagnetic immunity : acc. To iec 61000-6-2, acc. To iec 61000-6-4
weight emitterreceiver: 800g 1200g
