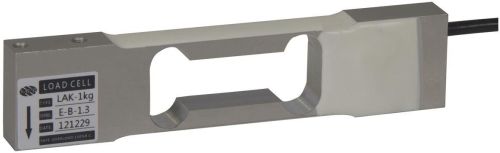

Electronic Balance Load Cell, Brand Name : LCT

We offer electronic balance load cell.
1、features
material:aluminum alloy
application:mainly used for electronic balances,counting scales etc.
Max.platform size:150*150mm
2、specifications
rated loading:0.3kg~3kg
accuracy class:±0.015%r.o.
dimension:12*29*130mm
rated output:1.3±10%mvv
zero balance:±0.05r.o.
non-linearity:±0.02%r.o.
hysteresis,repeatability:±0.015%r.o.
creep in 2 min.:±0.015%r.o.2min
temp.effect on output:±0.03%r.o.10℃
temp.effect on zero:±0.05%r.o.10℃
input resistance:405±10ω
output resistance:350±3ω
safe overload:150%r.c.
insulation resistance:≥2000mω
compensated temp. Range:-10to+40℃
operating temp. Range:-20to+60℃
excitation,maximum:18vdc
cable,length:φ4*25cm.
