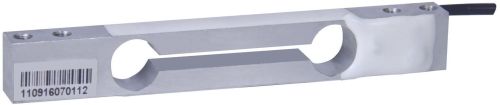

Electronic Balance Load Cell, Brand Name : LCT

We are offering electronic balance load cell. 1、features
material: aluminum alloy
application:mainly used for electronic balances,counting scales etc.
Max.platform size:150*150mm
2、specifications
rated capacity:0.3~3kg
dimension:10*15*110mm
rated output:1.0±10%mvv
zero balance:±5%r.o.
non-linearity error:±0.02%r.o.
hysteresis,repeatability error:±0.015%r.o.
creep in 30 min.:±0.03%r.o.
temp.effect on output:±0.03%r.o.10℃
temp.effect on zero：±0.05%r.o.10℃
input resistance：405±10ω
output resistance：350±3ω
safe overload：150%.r.c.
insulation resistance：≥2000mω
compensated temp.range：-10to+40℃
operating temp.range：-20to+60℃
excitation,recommended：5~12vdc
cable,length：φ4mm*25cm
