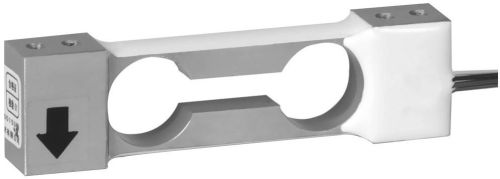

Electronic Balance Load Cell, Brand Name : LCT

We are offering electronic balance load cell. 1、features
material:aluminum alloy
application:mainly used for electronic balances,counting scales etc.
Max.platform size:150*150mm
2、specifications
rated loading:0.3,0.5,1.5,3,6kg
accuracy class:±0.015%r.o.
dimension:12*22*70mm
rated output:1.0±0.1mvv
zero balance:±0.015r.o.
non-linearity:±0.02%r.o.
hysteresis,repeatability:±0.015%r.o.
creep in 2 min.:±0.015r.o.
temp.effect on output:±0.03%r.o.10℃
temp.effect on zero:±0.05%r.o.10℃
input resistance:395±10ω
output resistance:350±3ω
safe overload;150%r.c.
insulation resistance:≥2000mω
compensated temp. Range:-10to+40℃
operating temp. Range:-20to+60℃
excitaction,recommended:5-12vdc
cable,length:20cm*0.8mm
