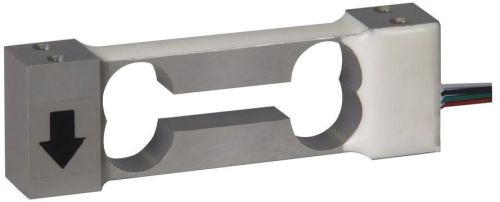

Electronic Balance Load Cell, Brand Name : LCT

we are offering electronic balance load cell. 1、features
material:aluminum alloy
usage:mainly used for electronic balances,counting scales etc.
max.platform size:150*150mm
2、specifications
rated loading:1.5,3,6kg
dimension:12*22*80mm
rated output:1.0mvv±10%
zero balance:±0.05r.o.
non-linearity:±0.02%r.o.
hysteresis,repeatability:±0.015%r.o.
creep in 2 min.:±0.015%r.o.2min
temp.effect on output:±0.05%r.o.10℃
temp.effect on zero:±2%r.o.10℃
input resistance:1130ω±20
output resistance:1000ω±10
safe overload:150%r.c.
insulation resistance:≥2000mω
compensated temp. range:-10to+40℃
operating temp. range:-20to+60℃
excitation,recommended:5-12vdc
excitation,maximum:18vdc
cable,length:ø0.8mm*0.2m
