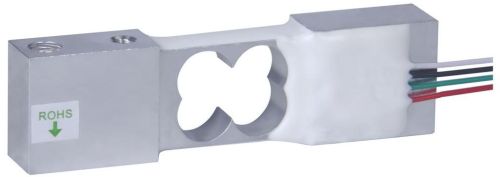

Electronic Balance Load Cell, Brand Name : LCT

We are offering electronic balance load cell. 1、features
material:aluminum alloy
micro structure
mainly used for electronic balances,kitchen scales etc.
2、specifications
rated loading:1,2kg
dimension:12*22*80mm
rated output:1.0mvv±20%
zero balance:±0.1mvv
non-linearity :±0.03%r.o.
hysteresis,repeatability:±0.03%r.o.
creep in 2 min.:±0.03%r.o.2min
temp. Effected on output:±0.05%r.o.10℃
temp. Effected on zero:±2%r.o.10℃
input resistance:1130±20ω
output resistance:1000±10ω
safe overload :150%.r.c
insulation resistance:≥2000mω
operating temp.range:-10to+40℃
excitation,recommended :≤6vdc
cable,length:ø0.8mm*0.2m
