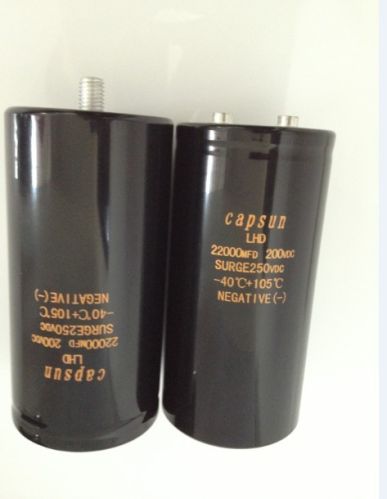

Electronic Capacitor

We are offering electronic capacitor.cleaning circuit boards after soldering .
halogenated hydrocarbon cleaning solvents are not recommended
for use in cleaning capacitors supplied with exposed end seals .
where cleaning with a halogenated solvent is desired , capacitors
should be ordered with an epoxy-coated end seal .
Do not apply excessive force to the lead wires or terminals .
if excessive force is applied to the lead wires and terminals , they
may be broken or their connections on the internal elements may
be affected . (for strength of terminals , please refer to jis c5102
and c5141 . )
rated rated case size typ.esr ripple order
voltage cap.cr d x l 100 hz, current code
ur [μf] [mm] 20°c ir~100 hz
[v] [mω] 85℃[a]
200v 820 35*50 112 1.8 ax200m5b821ka050
1000 35*50 85 1.9 ax200m5b102ka050
1500 35*60 56 2.5 ax200m5b152ka060
1800 35*70 48 3.1 ax200m5b182ka070
2200 35*80 38 3.5 ax200m5b222ka080
2700 50*90 31 4.1 ax200m5b272kc090
3300 42*100 25 4.6 ax200m5b332kb100
