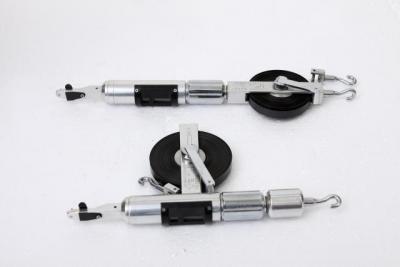

Contact SupplierWe are offering electronic digital display convergence device.
Product introduction:
this instrument is used for quickly and accurately measuring the distance changes between two reference points. Mainly used for measuring the displacement of mine, tunnel excavation engineering and other unstable slope and structure, and also used for monitoring structural deformation and surface movement.
product features:
electronic digital display , high accuracy and small error
steel frame and case is vertical fixed
whole sealing, suitable in the severe environment
technical parameters:
a. Environmental conditions
environmental temperature: 0 ~ 40centigrade
relative humidity: no more than 93% +/- 3%
b. Basic parameters
measurement range (two specifications) : 0.5m ~ 10m and 0.5m ~ 15m (please indicate )
resolution: 0.01mm
measurement accuracy: 0.06mm
value display stability: no more than 0.01mm within 24h
power: 1.55 v(1pc oxidation silver button cell sr44w)
dimension: 410mm * 100mm * 35mm
weight: 0.9kg
