Electronic Measuring System for Universal Testing Machine

Listing ID #3912098

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Product Details

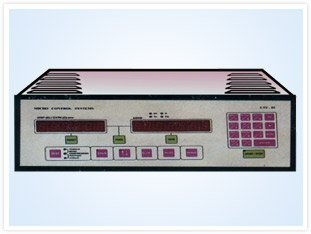

Electronic control panel uses latest microprocessor which incorporates state of the art technology with fo lowing features. The panel s having unique feature of two modes of operations i. e. Panel control mode & PC control mode. With pane contro mode, the mach ne can be operated from panel ( without PC) and g ves output results / graph on dot matrix printer connected to the panel. With PC control mode, load, displacement and extension data transferred to PC through RS- 232 serial port thus giving rea time disc ay and graph of se ected test on PC.

Features : • Full fledged sealed membrane keyboard with numeric keypad. • Data entry for specimen d mensions. • Push button tare facility for load & reset for displacement/extension. • Serial port for commun cation wth PC. • Built in centronics interface for dot matrix printer. • Modulus data output (optional ). • Scrolling of test result data up to breakage. • Results include load Vs Displacement Curve, Max Load/ Displacement. UTS, % Elong % reduction n Area, Yield oad, Proof Stress. • Over oad safety through opto isolated output

	Serial Communications Software. MCS-MP series control panel can be connected to any PC using RS-232 commun cat on port. MCS offers window based software on PC to enable the user to effectively evaluate different parameters. The Features include • Real time graph of selected test on PC. • User friendly software with colour graphics. • Wide Range of Data entry for easy test setup • Unit interchangeability of load in kg., T, N, kN. • Extensive graphics, Curve fitting / Zooming / Tracing. • Effective file handing for data storage, RD BMS based. • Operational instructions on HELP Screen for a I programme modules. • Automatic calculation of Proof stress and Young s Modulus with graphical representation • Automate reseal ling of graph. • Batch testing, mult graph facility and statistica anaysis with MIS reports (optional). • Load, displacement, extension, strain rate values are displayed at all times on PC screen • Load Displacement, Load V Extenssion, Stress Strain graphs available for single test run.. • Results include graph, Max load Max displacement, U.T.S.,% E ongation,% Reduction In Area, proof load, proof stress, Yield stress, Youngs Modulus, breaking load, etc.

Measuring System with PC Add on cards MCS-PC.
In MCS PC model, the measuring system is based on two PCB's inserted in PC motherboard slots. All the system features are same as MCS-MP with serial software.
Electronic Extensometer
MCS offers Strain Gauge type electronic extensometer for the evaluation of 0.2 Proof Stress 8, Young's modulus values.
Extensometer Specifications
• Model MCE-2
• Type Strain Gauge
• Extension 2 mm
• Gauge Lenth 25 / 50 mm
• Maximum Dia. : 25 mm

Model	Units	UTE FLG-10	UTE FLG-20	UTE FLG-40	UTE FLG-60	UTE FLG-100	UTE FLG-200	UTE FLG-300
Maximum Capacity	kN	100	200	400	600	1000	2000	3000
Measuring Range	kN	0-100	0-200	0-400	0-600	0-1000	0-2000	0-3000
Load Resolution	N	10	20	40	60	100	200	300
Load Range with accuracy measurment ±1 %	kN	2 to 100	4 to 200	8 to 400	12 to 600	20 to 1000	40 to 2000	60 to 3000
Resolution of piston movement	mm	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Clearance for tensile at fully descended working piston	mm	50-700	50-700	50-700	50-850	50-850	50-900	50-900
Clearance for Compression test at fully descended working piston	mm	0-700	0-700	0-700	0-800	0-850	0-900	0-900
Clearance between columns	mm/min	500	500	500	600	750	850	850
Ram Stroke	mm	150	200	200	250	250	300	300
Straining/piston speeds (at no Load)	mm/min	0-300	0-150	0-150	0-100	0-80	0-45	0-45
CONNECTED LOAD
Power	kW	1.0	1.0	1.7	1.9	2.6	4.9	6.4
V		400-440	400-440	400-440	400-440	400-440	400-440	400-440
Ø		3	3	3	3	3	3	3
Dimensions L X W X H (approx.)	mm	2032 750 1960	2032 750 1960	2060 750 2180	2265 750 2534	2415 815 2900	3000 1200 3000	3500 1900 4550
Weight (approx.)	Kg	1500	1500	2500	3500	5500	9500	15000
STANDARD ACCESSORIES - FOR TENSION TEST
Clamping jaws for round Specimens of diameters	mm	10-20 20-30	10-20 20-30	10-25 25-40	10-25 25-40 40-55	10-25 25-45 45-70	20-40 40-60 60-80	25-50 50-70 70-90
Clamping jaws for flat Specimens of thickness	mm	00-10 10-20	00-10 10-20	00-15 15-30	00-15 15-30	00-20 22-44	00-20 20-45 45-70	00-25 25-50 50-75
Width	mm	50	50	65	70	70	90	100
FOR COMPRESSION TEST
Pair of comperession plates of diameter	mm	120	120	120	120	160	220	220
FOR TRANSVERSE TEST
Table width adjustable rollers. width of rollers	mm	160	160	160	160	160	200	200
Diameter of rollers	mm	30	30	30	50	50	70	70
Maximum clearance between support	mm	500	500	500	600	800	900	1000
Radius of punch tops	mm	6,12	6,12	12,6	16.22	16,22	30,40	50,75

Company Details

MCS is the leading company manufacturing all types of Material Testing machines and SPMs with 30 years of experience in this field.We have a full fledged set up for manufacturing sophisticated state of the art UTMs, Tensile Testers, Hardness testers and specialized testing machines. We have diversified customers in the areas like Power, Steel & Roiling Mills, Foundries &, forging units, Automobile, Defense, Research & Metallurgical Labs, Eng Colleges. MCS is backed up by strong R&D setup to meet varying needs.
We have supplied our systems to mfrs like Fine Spavy, Ratnakar, Akash Ind as OEM.
Our electronic conversion package for UTMs with electronic extensometer and variable gauge length for evaluation of 0.1%-1.0% Proof stress is THE BEST SELLER with 400+ users.
Applications :-
Metal, rubber, plastics, polymers (elastomers), cement, copper, wires, cables, conductors, spring, soil, ceramics, insulators & wood / plywood
