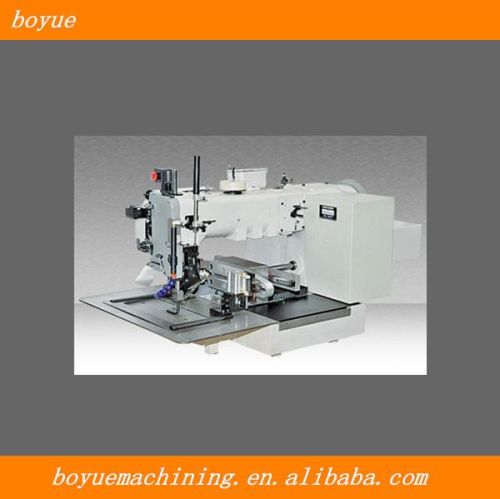

Electronic Pattern Sewing Machine For Extra Thick Material

₹ 6.24 Lakh / 7100 7100 Set

MOQ1 Set(s)
Presser plate liftingOuter presser plate 25mm (pneumatic), middle presser foot 20mm
NeedleDYx3 250
Speed setting100-800rpm arbitrary setting
Allowable sewing rangeDirection X: max 300mm, direction Y: max 160mm,
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

Trimming modeElectrical heating
Speed setting100-800rpm arbitrary setting
Spindle motor220V 750W servo motor
ShuttleSuper-large shuttle hook
Needle bar stroke56mm
X-Y driving mechanismStepping closed-loop motor, synchronous belt, linear guide driving interval and continuous switching mode
Allowable sewing rangeDirection X: max 300mm, direction Y: max 160mm,
Highest sewing speed800rpm
Presser plate liftingOuter presser plate 25mm (pneumatic), middle presser foot 20mm
NeedleDYx3 250

We offers electronic pattern sewing machine for extra thick material.
■ it is a sewing machine design for goods of thick material, aimed at industries such as bag and luggage, shoes and hats, household articles, sports goods and vehicle interior. And the designed sewing thickness can be 28mm.
■ it is equipped with high-precision servo control system and high-performance servo motor drive, which can set up arbitrary sewing model in prescribed range
■ the machine has strict structure , reliable and accurate transmission and can carry out setting of various parameters like patterns, stitch number and stitch trace length by random programming unit.
■ it is convenient to input, store, revise and utilize patterns and conduct sewing process by usb inputting pre-compiled patterns.
■ it is also a kind of large-scale electronic pattern sewing machine specialized for goods with extra-thick materials like leather and lifting belts.
