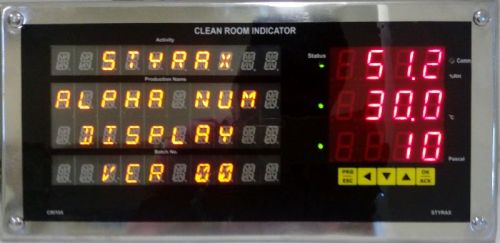

Electronic Status Board

Temperature40°C to 100°C.
DP-105.4 to 105.4 mmWC, -1034 to 1034 Pascal's and 8 types of units with equivalent values.
%RH0.0 to 100%RH.
ClockHH:MM (Hours and Minutes format only)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

the styrax “electronic status board” has been specially developed keeping process measurement requirements of clean rooms in pharmaceutical industries. The process scanner can measure....

View More Details

Send Enquiry

Product Details

the styrax “electronic status board” has been specially developed keeping process measurement requirements of clean rooms in pharmaceutical industries. The process scanner can measure temperature, rh inbuilt integral sensor, differential pressure inbuilt sensor or three analog inputs or two analog inputs and inbuilt differential pressure sensor. It has on demand dew point display. The scanner has status leds for process violation indication. Rh, temperature and differential pressure will display individually and data transfers to any master device on modbus rtu rs-485 communication. It has individual communication diagnosis led's for scada communication and status application communication. The scanner has inbuilt buzzer for audible process violation. It has keypad to program and calibrate the instrument by user. It has stainless steel modular face plate, which is designed as a mounting accessory for monitor suited for brick and modular wall for clean room applications where you need flush mounting mechanism.

features :

advanced microcontroller based process measurement.
programmable channel ranges and unit selections.
4 digit, 0.8” bright 7- segment led display for displaying temperature, rh and dp.
10- digit 0.56" bright 16-segment led display for displaying activity.
20- digit 0.56" bright 16-segment led display for displaying name of product.
10- digit 0.56" bright 16-segment led display for displaying batch number.
user selectable set limits for process value violation.
process parameter status indication with 3 bi-color 3mm leds.
inbuilt buzzer to audible process value violation.
password protection for calibration and programming mode.
software calibration for 3 channels using front panel keypad.
modbus rtu multi drop rs-485 serial communication for plc, scada, etc.
rs485 interface to batch status application.
programmable baud rate between 9.6k/19.2k/38.4k.
diagnosis indication of communication with scada and batch status application.
user programmable offset correction.
brick and modular wall mounting.
stainless steel enclosure.

Accuracy

%RH	±2% RH for 10 to 90% and±4% RH for remaining.
Temperature	: ±0.3°C for 0°C to 50°C and 2°C for remaining.
DP	±1.5% for all units.
Clock	±0.5 Second (In case of communication with Master Clock) ±2 minutes per year (In case of communication failed with Master Clock)

Resolution
