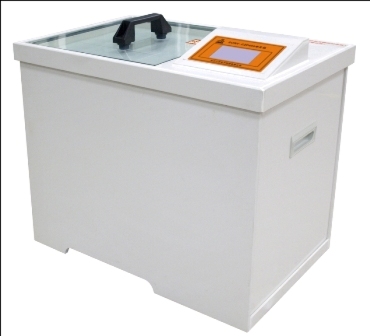

Electronics Machines

We are offering electronics machines
1.usage: double-sided perforative aperture copper sinking and copper plating to the double-sided circuit board and other non-metal materials;
2.function characteristics: air-blowing and precoated of copper plating, electroplating short circuit and no plating open circuit testing; constant temperature and heating temperature control with double temperature-control protection, 4 processing grooves, which can satisfy the pcb through hole requirements; with opening cover detection, better protecting the safety of the operator;
3. structure features: transparent roof, convenient for operation;
4. through-hole technology: advanced black-aperture process, without environmental pollution;
5. processing dimension: 300mm×250mm double-sided board;
6. control system: high-performance arm embedded processor + embedded operating system, human-computer interface: big screen color lcd screen + touch screen; in touch screen you can read electronic edition through-hole process manual ; in touch screen you can play the circuit board design sketch after through-hole process;
7. air pump parameters: gas flow: 20l/min;
8. electroplating power: all control positive and opposite direction pulse electroplating power supply, the current range: 0~30a, adjustable 0.1 a step value, voltage: the highest dc6v;
9. input power: ac220v/50hz;
10. entire machine power: 1000w;
11. optional configuration: ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. Through the wireless or local area network and the internet, seamless connection with network management system and software, mating pcb network management software, providing long-term free upgrades service;
12. overall dimension: length 740mm×width 500mm×height 580mm;
13. weight: 30kg.
