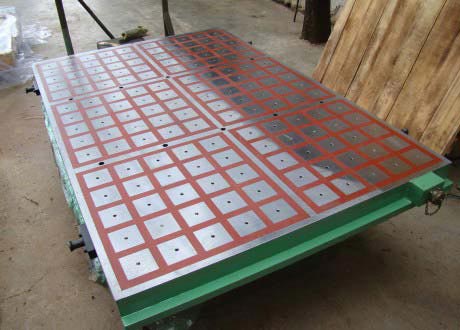

ELECTROPERM HEAVY DUTY CHUCK (70 X 70) Quard Pole

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Work holding device for conventional & CNC milling m/c. COLD DEVICE as it doesn't require power continuously except for short period of activation & deactivation. Suitable for light milling i.e.....

Company Information

4.4/5

(7)

View Number

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2011

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Work holding device for conventional & CNC milling m/c.
COLD DEVICE as it doesn't require power continuously except for short period of activation & deactivation.
Suitable for light milling i.e. 3-6 mm depth of cut at recommended speed & feed.
Maximum material removal is possible.
Economical for operation & maintenance.
No accidents due to power failure.
Slippering force is 2.5 - 3.5 Kg/cmÃ�Â².
Vertical Lifting Force is 40 - 45 Kg/cmÃ�Â².
Variable supply unit to vary power which helps in alignment of jobs.
Chuck is tested for Slippering force, Waterproof test, Temperature rise test, Electrical & Demagnetizing tests.
Good quality & standard electrical accessories.
We also manufacture Special chucks to suit individual requirement
Sr. No. Cat No. Size (mm)
1. UC - 71901 600 L x300 W x 110 H
2. UC - 71902 750 Lx 300 W x 110 H
3. UC - 71903 1000 Lx 300 W x110 H
4. UC - 71904 1500 Lx 300 W x 110 H
5. UC - 71905 600 Lx 400 W x 110 H
6. UC - 71906 750 Lx 400 W x 110 H
7. UC - 71907 1000 Lx 400 W x 110 H
8. UC - 71908 1500 Lx 400 W x 110 H
9. UC CONTROL UNIT WITH VARIABLE SUPPLY
