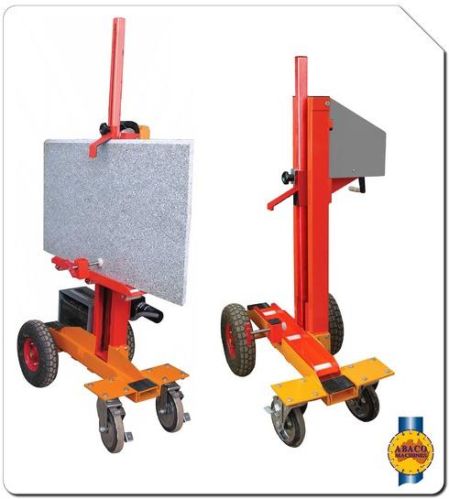

Elevating Hand Cart

elevating hand cart
this one of the kind elevating hand cart is designed for raising, loading, and unloading finished pieces safely with minimal labor. it is constructed of a vertical steel channel where pieces can be raised and lowered by the use of a hand crank.
the hand crank is located on the controlling unit away from the pieces being handled for safety purposes. a rubber lined channel can accommodate pieces up to 2 34 inches (7cm).
two pneumatic tires and two self-locking swivel casters are positioned just outside the steel frame of the base for added stability. the elevating hand cart has the ability to elevate pieces from 1 foot up to 3 12 feet where they can easily load onto a truck bed for transport to and from job sites.
model number: ehc3541
length inches (mm): 35 38 (900)
width inches (mm): 23 58 (600)
height inches (mm):59 - 94 12 (1500 - 2400)
net weight pounds (kg): 165 (75)
w.l.l pounds (kg): 440 (200)
seat length: 27 12 inches (700mm)
maximum lifting height: 41 14 inches (1050mm)
maximum stone width: 47 14 inches (1200mm)
maximum stone thickness: 2 34 inches (70mm)
elevating winch cart
model number: ewc3541
length inches (mm): 35 38 (900)
width inches (mm): 23 58 (600)
height inches (mm): 59 - 94 12 (1500 - 2400)
net weight pounds (kg): 214(97)
w.l.l pounds (kg) : 440 (200)
