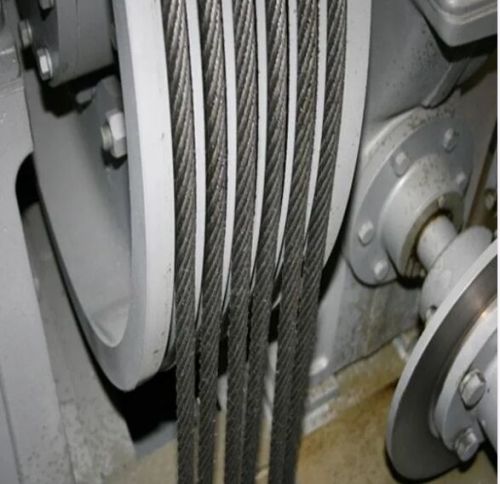

ASAHI Elevator Wire Rope

₹ 20 / Meter

MOQ500 Meter
MaterialUngalvanized / Galvanized
Brand NameASAHI
Tensile StrengthPowerform compacted rope is manufactured using individually compacted strands. During the compaction
FeaturesWithstand high pressure, Easy usability, Longer service life .
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

5.0/5

Ask for more detail from the seller

Report incorrect details

Brand NameASAHI
MaterialUngalvanized / Galvanized
Size6x19,7x19,8x19,6x36
Length500 - 1000 mtrs
Tensile StrengthPowerform compacted rope is manufactured using individually compacted strands. During the compaction
Diameter1-10 mm,10-20 mm
Core MaterialFiber Core,Sisal
FeaturesWithstand high pressure, Easy usability, Longer service life .
CoreSteel Core,IWRC
Material Grade1470,1570,1770
Construction6X19 (12/6/1),6X19 (9/9/1),6X19 (12/6 + 6F/1),8X19(9/9/1),8X19(12/6+6F/1)

Specifications:

Nomi. Dia	Approximate Mass		Minimum Breaking Force Corresponding to Rope Grade of
Nomi. Dia	Approximate Mass		1570		1770		1960
(1) mm	Fibre Core	Steel Core	Fibre Core	Steel Core	Fibre Core	Steel Core	Fibre Core	Steel Core
	(CF)	(CWR)	(CF)	(CWR)	(CF)	(CWR)	(CF)	(CWR)
	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)
	kg/100m	kg/100m	kN	kN	kN	kN	kN	kN
8	24.5	25.7	32	33	36	37	40	41
9	31.0	32.6	41	42	46	47	51	52
10	38.3	40.2	50	52	56	58	62	64
11	46.3	48.6	61	62	68	70	76	78
12	55.1	57.9	72	74	81	84	90	93
13	64.7	67.9	85	87	95	98	106	109
