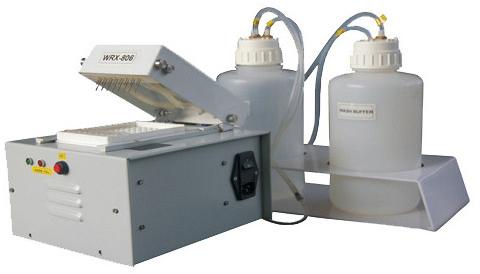

ABS Fire Retardant Elisa Plate Washer 36x36x22 Cm (lxbxh)

Made using the cutting-edge technology, the Elisa Plate Washer, which we provide, is made using quality components and materials. Having a long life, these Elisa Plate Washers ensure the best operations. Easy to operate, these Elisa Plate Washers are priced economically by the clients.

Technical Specifications

General Specification
Human Machine Interface	Touch Panel/ Keypad
Linear measurement range	0.000 to 3.500 Absorbance Unit(A
Photometric Accuracy	+2% or 0.007 whichever is higher, from 0 to 1.5 A
	+3% form 1.5 A TO 3.5 A
Drift	<0.005A/hr
Photometric Linearity	2.5A
Optical measuremnt	8 Channel
Filters
Type of Filter	Narrow band Interference
Wave Length	405nm, 450nm, 492nm, 630nm, & Four Optional
Half Bandwidth	10nm+ 2nm
Selection	Automatic by Stepper Motor
Light source	Tungsten halogen lamp, 20 Watts
Warm up time	90 seconds (built-in)
Display	6" Graphics LCD, Negative Blue, STN
Curve Plotting	Graphical Representation on Printer
Plate Carrier Movement	Precisely through the stepper motor
Printer	Built in Thermal Printer 52 coloumns
Memory	Battery back up for 250 tests and more than 2500 results
Analysis Mode	Absorbance (Normal & Differential) cut-off, Multi-Standard, %Absorbance, Single Standard, Uptake, Kinetic
connectivity/ RS232 Serial Port	9600 baud, 8 data, 1 stop, no parity bits / USB
Power
Wattage	75 Watts
Voltage	115-230 Volts+ 10%, 50/60 Hz.
Operating Position	On Horizontal Flat, rigid and vibration free surface
Storage Condition
Temperature	From +180 C to 350C
Relative Humidity	up to 80%
Stoarage conditions
Temperature	From -100C to 400 C
Relative Humidity	up to 80%
Enclosure	ABS Fire Retardant
Size (cm)	36x36x22 (lxbxh)
Weight	10 Kgs
