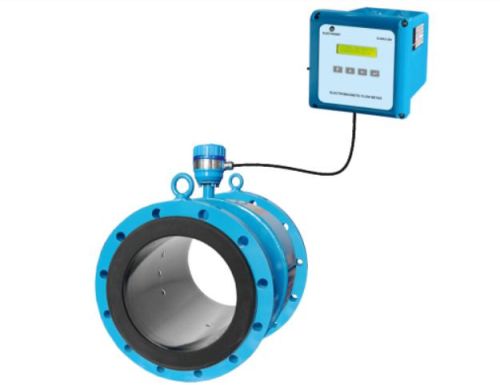

Stainless Steel ELMAG 200W Electromagnetic Flow Meter

LMAG-200W – Zero Upstream/Downstream Electromagnetic Flow MeterFeatures

• No inlet or outlet straight-run requirement (0 × DN)

• Full-bore design for unobstructed flow

• Advanced signal processing for enhanced stability

• No tube restriction and zero pressure loss

• Multiple electrodes for higher accuracy

• Stable and accurate long-term performance

• Reliable, cost-efficient, and flexible flow measurement solution

Description

The Electronet ELMAG-200W is a next-generation zero-run electromagnetic flow meter engineered for accurate and maintenance-free flow measurement without the need for upstream or downstream straight pipe runs.

Utilizing Faraday’s Law of Electromagnetic Induction, the ELMAG-200W delivers high accuracy, exceptional turndown capability, and stable operation even in challenging water and wastewater applications.

Its full-bore construction ensures zero pressure loss, while the absence of moving parts minimizes maintenance requirements.
Equipped with a robust selection of liners and electrodes, along with an integrated local display, it offers one of the most user-friendly and efficient flow measurement solutions available—without requiring external software or hardware.

Typical applications include:

• Water distribution

• Wastewater treatment

• Industrial utility monitoring

• Irrigation and municipal systems

Technical SpecificationsPerformance Characteristics

• Nominal Diameters: 50 NB to 600 NB (2" to 24")

• Process Connections: EN (DIN), ASME, JIS, AWWA flanges

• Process Temperature: –20 to +90°C (–4 to +194°F)

• Degree of Protection: IP67 (Type 4X enclosure)

• Measured Error:

  • Standard: ±0.5% of M.V.

  • Optional: ±0.3% of M.V.

  • Directly after bend: ±0.5% of M.V.

• Turndown Ratio: 100:1

• Electrical Conductivity Required: ≥ 25 µS/cm

• Inlet/Outlet Runs:0 × DN (No straight run required)

• Measured Variables: Volume flow, conductivity, mass flow

• Max Process Pressure: PN40 / Class 300 / 20K

MaterialsLiner Options

• Polyurethane

• Hard Rubber

• PTFE

Liner Temperature Limits

• Hard rubber: 0 to +80°C (+32 to +176°F)

• Polyurethane: –20 to +50°C (–4 to +122°F)

• PTFE: –20 to +180°C (–4 to +356°F)

Electrodes

• SS316L

• Hastelloy C-22

• Tantalum

• Platinum

Wetted Parts Temperature (Ambient)

• Hard rubber: 0 to +80°C

• Polyurethane: –20 to +50°C

Additional Technical SpecificationsVelocity Range

• 0.3 m/s – 2.5 m/s (up to max. 10 m/s)

Housing Materials

• Sensor Housing: MS / SS304 / SS316

• Transmitter Housing: Aluminium Die-Cast / SS316

Protection Classes

• Compact Version: IP66 / IP67

• Remote Sensor (Standard): IP66 / IP67

• Remote Sensor (Optional): IP68 with protective varnish

• Remote Transmitter: IP66 / IP67

Display & Operation

• 2-line backlit LCD display

• Touch operation (from outside)

• Full configuration through local display

• Integrated data logger

Outputs

3 Output Channels Including:

1. 0–20 mA / 4–20 mA with Generic HART (Active)

2. Pulse / Frequency / Switch Output (Passive)

3. Additional Pulse / Frequency Output (Passive)

Digital Communication

• HART

• MODBUS RS-485

Power Supply

• 100–240 V AC

• 24 V DC

Approvals & Calibration

• Calibration performed at ISO/IEC 17025 accredited facilities

• Material certificates 3.1 available

Sensor Features

• Flexible connections

• Corrosion-protected structure (EN ISO 12944)

• IP68 protection option available

Transmitter Features

• Backlit display for safe and easy operation

• Rugged and durable housing

• Integrated data logger for process recording
