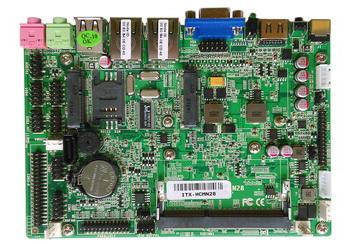

Embedded Motherboard

We offer Embedded Motherboard.
CPU Intel Atom N28001.86Ghz Low consumption processor
Chipset Single chip: Intel NM10
Memory 1 x SODIMM DDR3 13331066MHz DIMM, Max support 4GB
Graphics Onboard Intel GMA3650 support DirectX 9.0C
Dsipaly Support VGA,HDMI,LVDS
VGA+LVDS,VGA+HDMI,HDMI+LVDS, All do Synchronous or asynchronous dual view
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 101001000M LAN support PXE.
Storage Interface 1 x SATA2.0 Hard disk connector
Expansion Slots 2x MINI PCIE slot
USB Support 8 PCS USB 2.0 Ports (4 pcs need extend)
Internal
IO Connectors 1 x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
2 x USB 2.0 headers
1 x Clear CMOS Header
6 x COM headers
1x GPIO header
1 x VGA_H header
1 x 1824bit LVDS header
1 x LVDS_INVERT header
1x LPT header
1x SIM header
Back Panel
Connectors 1x DC port
1 x VGA port
1 xHDMI port
2 x RJ-45 Giga Lan Ports
2 x USB 2.0 ports
2x LINE out & MIC port
IO Controller 1 x IT8782F
BIOS AMI Authorized 16Mbit BIOS process, support RPLPXE
Form Factor 165 x 115mm
Work Environmental
Working conditional temperature -20~80°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
