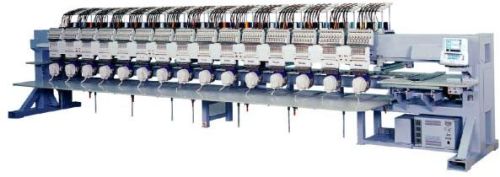

Embroidery Machine (Bex C)

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering Barudan Bexs-c series - Embroidery Machine. Barudan's drop table and quick change framing system provide fast and easy conversion between products. Our Embroidery Machine (Bex C) is functional for various types of fabric yarns. We procure our Embroidery Machine (Bex C) from the trusted sources in the market.

View More Details

Send Enquiry

Product Details

Technical Specifications

Model	Embroidery Area (mm)	Speed (rpm)	Dimension (mm)
Model	Embroidery Area (mm)	Speed (rpm)	L	W	H
BEXS-Z1512C	450×380/380	(Portal Frame) 200~1000 (Cap Frame) 200~800	6600	1360	1760
BEXS-Z1512C	450×450/450		7400
BEXS-Z1512C	450×520/520		8295
BEXS-Z1515C	450×380/380		7410
BEXS-Z1518C	450×380/380		8550

Model	Continuous Design (mm)	Needle Distance (mm)	Power Supply (V)	Number of Needles	Stitch Length (mm)	Power Consumption (kw)
BEXS-Z1512C	450×4560	380	1φ 200V~240V 3φ 200V~415V	15	0.1~12.7	1.5
BEXS-Z1512C	450×5400	450
BEXS-Z1512C	450×6240	520
BEXS-Z1515C	450×5700	380
BEXS-Z1518C	450×6840	380
