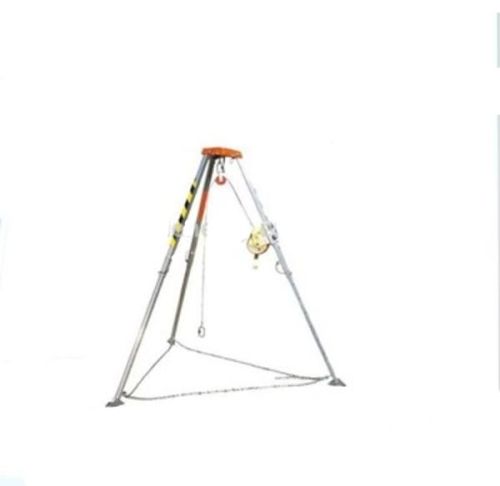

Emergency Rescue Tripod With Ce Certificate

We are offering emergency rescue tripod with ce certificate.
(chinacoal08)
                                                         camp rescue tripod

the rescue tripod is mainly used for rescue operations in high altitude, cliff and confined space, such as underground pipe, shaft, cesspit, closed container etc. Widely used by firefighting, municipal administration, mining etc rescue institution.


 ring protection chain on the feet of rescue tripod;
 self-lock device on winch of the rescue tripod, which ensures lock-in in any position, to make sure the safety of the sling;
 special stainless steel sling with good suppleness is taken used. The sling will not be damaged by  corrosion or lack of oil;
 the length of legs can be adjusted, suitable for rugged rescue situations


main parameter

 model   camp
 closed length 130cm
 extension length  228cm
 operating load  400kg
 breaking load  1200kg
 max. Prevent breaking force  22kn4944.94lbs(steel wire rope)
 length scope  134-214cm
 packing dimension   175*23*23cm
 weight  17.3kg
winch with automatic brake device
 wire length  25m(no. 284.01)
 wire diameter  5mm
 operating load  180kg
 breaking load  1800kg
 weight  13kg
