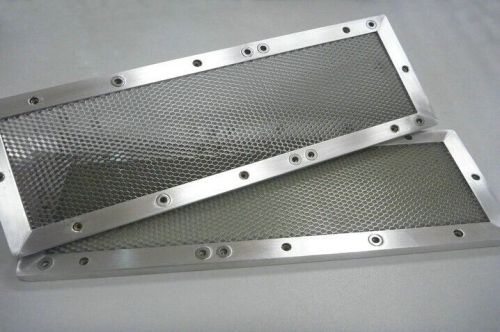

EMI Shielding Honeycomb Vent Panel

We provides high quality stainless steel honeycomb vent panel and aluminum honeycomb for aero space and civil applications.Cell size(mm):1.6,3.2,6.4,8,10 Dimension(mm):300*300,600*600,1000*1000Thickness range(mm):5-300  Standard thickness(mm):6.35,12.7,25.4,30,40,45Wall thickness(mm): stainless steel:0.08,0.13  Finishes: Chromate oxidation, Chemical nickel-plating,Tin platingFrame structure available: round, rectangle, special shape, water proof type, etc. Frame material:6063 aluminum or stainless steel The honeycomb vent panel is widely usedfor EMI shielding rooms ,shielding box,shielding racks Wehave both aluminum and steel honeycomb vent panel .  The size and shapes could make as customerdrawing.  The thickness is from 5mm to50mm, the cell size is from 1.5mm to 10mm.     Wholealuminum alloy structure, low weight and high-strength Appliedwith EMI shielding gasket, easy installation  Shieldingeffectiveness of aluminum vent panel frequency 100KHZ 10KHZ 1GHZ 10GHZ shielding effectiveness 80 dB 90 dB 90 dB 80 dB     Wholesteel or stainless steel honey comb Appliedwith EMI shielding gasket, easy installation Shieldingeffectiveness of steel vent panels frequency 14KHZ 100KHZ 100MHZ 450 HZ 1GHZ 10 HZ 18 GHZ 40GHZ shielding effectiveness ≥100dB ≥ 120 dB ≥ 120 dB ≥ 120 dB ≥120dB ≥110dB ≥100dB ≥90dB     FAQQ: How can I buy from your company? A: When you find the product you want
