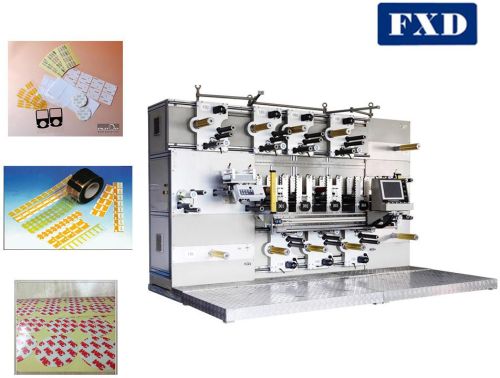

Empty Roller Label Die Cutting Machine

We are offering empty roller label die cutting machine.
The process of unrolling material through a press and utilizing a precision engraved steel cylinder die to roll over & cut specified shapes. Your material may be carried by a release liner and rolled onto a new core or sheeted into pads. Rotary dies can be made to cut all the way through your material and its release liner or through the material and down to the release liner
applications:
1: kinds of film for electronic products: reflecting film, diffusing film, polarizer film
2: kinds of adhesivesticking series: adhesive label, sticking label, gule or adhesive layer for mobile product, conductive adhesive, insulation layer
3: shockproof and dustproof material: poron pad,rubber mat, eva tape, rubber cushion, poron cushion
main features:
1: this rotary slitting and die cutting machine is suitable for deal with product in high volume.
2: two sets of tension controlling system to make sure the controlling tension depend on the habit of operator and the crafts of product.
3: the operating monitoring system, emergency switch, and safety sensor for main die-cut station to protecting the operator.
4: the computerized controlling system can store 200 craft procedure formula.
standard parameters:
x0525ba10 empty roller label die cutting machine
max web size: 250mm
max speed: 56 metermin
max thickness of material: 0.3 mm
type of material: in roll
max diameter of material: î¦400mm
number of die-set stand: fivepcs
max winding draft tension: 100newtonmeter
net weight: 3200 kg
dimension: 2990*2120*2250mm
power:380v, 3phase,50hz 15kw
number of standard shaft: 10pcs
