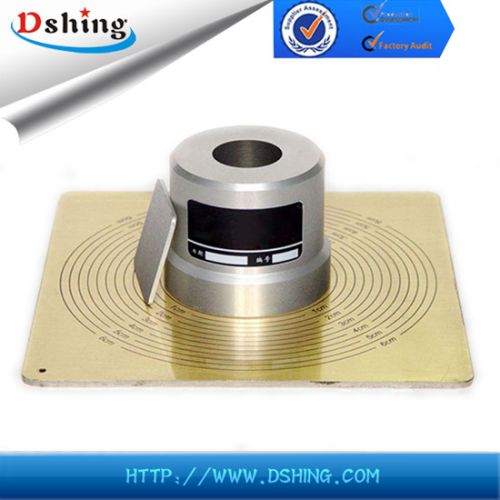

Emulsified Asphalt Consistency Tester

We are offering emulsified asphalt consistency tester.
Product introduction:
dshd-0751 emulsified asphalt consistency tester is designed and developed as per t0751 “emulsified asphalt slurry seal mixture consistency test” in the industry standard jtj052 specification and test methods of bitumen and bituminous mixture for highway engineering.
Dshd-0751 emulsified asphalt consistency tester is applied to determine consistency of emulsified asphalt slurry seal mixture using a stipulated cone. The consistency is applied to check spread workability of slurry seal mixture,in order to decide suitable water quantities for ratio design of slurry seal mixture.
Technical parameters:
1. Top truncated cone:
(1) upper opening diameter: 38 mm;
(2) lower opening diameter: 89 mm;
(3) height: 76 mm;
2. Metal pedestal:
(1) thickness: 4 mm; with concentric lines;
(2) intervals: 0.5 cm;
main structure and characteristics:
1. It is composed of top truncated cone, bottom plate, and pedestal;
2. The top truncated cone is made of aluminum alloy. It is beautiful;
3. The pedestal is made of stainless steel. It is durable and it is with scales to easy reading.
