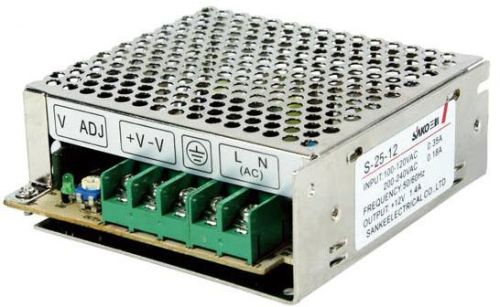

Enclosed Switch Power Supply

We offer enclosed switch power supply.
• output
rated power:25w
line regulation:±0.5%
load regulation:±0.5%
setup,rise,hold time:200ms,50ms,20ms at full load
overload:110% ~ 150% constant voltage limiting,auto-recovery
over voltage:115% ~ 150% rated output voltage
• input
voltage range:88~264vac 120~370vdc
frequency range:47~63hz
ac current:0.6a/115v 0.35a/230v
inrush current: cold start 13a/115vac 25a/230vac
leakage current:
• environment:
working temp.:-10℃ ~ +50℃ (refer to output load derating curve)
working humidity:20% ~ 90 %rh non-condensing
storage temp.,humidity:-20℃ ~ +85℃;10% ~95%rh non-condensing
temp. Coefficient:±0.03%/℃ (0 ~ 50℃)
vibration:10 ~ 500hz,2g 10min./1cycle, period for 60 min. Each along x, y, z, axes
• safety & emc
safety standards: design refer to gb4943,ul60950,en60950
withstand voltage:i/p-o/p: 3kvac i/p-fg: 1.5kvac o/p-fg: 0.5kvac
isolation resistance:i/p-o/p, i/p-fg, o/p-fg :100mω/500vdc
ce marking: low voltage directive
emi conduction & radiation: design refer to gb9254,en55022
• others
mtbf:50,000hrs min. Mil-hdbk-217f (25ºc)
dimension:110*78*37mm(l*w*h)
