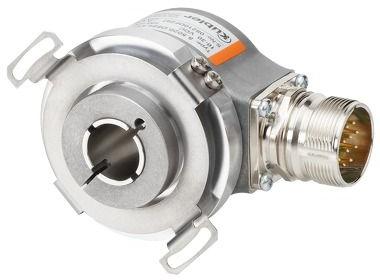

Encoders Incremental Sendix KIH50

₹ 5,000 - ₹ 15,000 / Piece

Weight170 g
Connection typesM23 connector radial M12 connector radial
Connection typesRadial cable, Tangential cable
Resolution max.5.000 ppr incremental
Supply TypeExporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 3 Years
Nature of Business Manufacturer
GST No. 19AAICT8848A1Z0

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Power supply5 V DC, 5...30 V DC, 10...30 V DC
Protection levelIP65
Working temperature-20 °C ... +70 °C
Shaft type8 mm hollow shaft, through 10 mm hollow shaft, through
ScanningOptical
Connection typesM23 connector radial M12 connector radial
Connection typesRadial cable, Tangential cable
DimensionØ 50 mm
InterfacesGegentakt, TTL / RS422, Open Collector
Resolution max.5.000 ppr incremental
Weight170 g
Shaft type12 mm hollow shaft, through 14 mm hollow shaft, through
Max. rotational speed6.000 min-1
Shaft type15 mm hollow shaft, through
Flange typeØ 50.80 mm, Ø 63.00 mm, Ø 65.00 mm

The economical sensor solution.

The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines.
