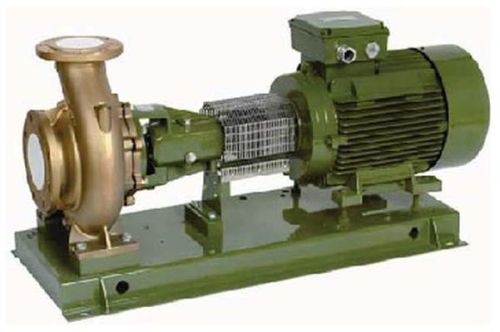

End Suction Pumps

End Suction Pumps are all non- self-priming single-stage, centrifugal volute pumps with axial suction port, radial discharge port and horizontal shaft. These pumps are coupled pumps with TEFC squirrel cage induction motors with main dimensions complying with IEC standard. These pumps have the discharge range from up to 2700 m3/h & head range from 129 m. End suction centrifugal pump suitable for multi-purpose application. SAER End suction Pumps come in two ranges :

• End Suction Pumps dimensions according EN 733
• End Suction Pumps dimensions exceeding EN 733

END SUCTION PUMPS ACCORDING TO EN 733
Operation Condition

• Max Head    : 129 M (423 ft)
• Max Capacity : 675 m3/hr
• Temp of Pumped Liquid : -15^oC up to +120^oC
• Frequency : 50 Hz
• RPM : 2900

Other Materials Available on offer : Carbon Steel, Brass, Stainless

Features

• The motor unit and the rotating part of the pump can be taken away without removing the pump body from the system piping.
• Closed impeller dynamically balanced and with balance holes for the balancing of the axial thrust.
• Shaft completely in stainless steel, greased ball bearings, flanges (UNI EN 1092-2) : up to DN
• NCB : bareshaft end-suction centrifugal pumps,
• NCBZ : bareshaft end-suction centrifugal pumps with electric motor, on a base.
• NCBT : bareshaft end-suction centrifugal pumps with dimensions exceeding steel, SS-316, Cast Iron

Applications

• Recycling plants
•  Heating, air conditioning
• Heat recovery
• Plants of water supply procurement,
• Pressurizing units
• Fire-fighting systems

Special Versions

• Constructive materials
• Different mechanical seals
• Special tensions
• Accessories On Request
• Kit counter flanges
• Motors with PTC protection
