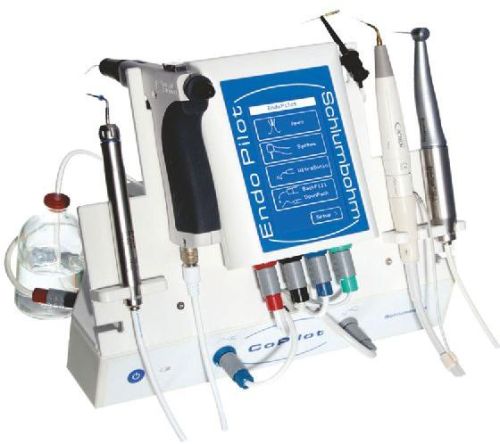

Endo Pilot Mobil Apex Locator

Description

Features:

• Endomotor with accurate & isolated Apex Locator
• The EndoPilot offers storage capacity for 1000-2000 different files along with individual torque and speed values for all important Ni-Ti systems
• Made in Germany
• Accurate, User Friendly and Modular

Latest Generation Apex Location Technique

The precise electronic length determination of the root canal works with a new impulse measuring method.

For these impulse method company Schlumbohm has the patent.

Thanks to the newest microprocessor technology the exact determination of the preparation length is done with 10-Bit-resolution in real time up to 1024 bits.

In comparison with the old impedance difference – or impedance quotient – method, the measuring time is significant shorter and the interpret ability is improved.

The old frequency measurement method

The 2-frequency method uses two voltages with different frequencies, which will be applied to the tooth – time after time. Therefore, no real-time measurement is possible.

As a result, there are only two individual time-shifted impedance values.

The manufacturers of these devices use subtraction- and division-processes.

Of course the possibilities of calculation with only two values are limited. Ultimately you obtain only one result which cannot be verified.
