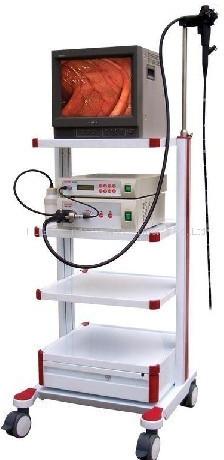

RuiHua Endoscopy

We are offering endoscopy. The patent of cut-filter technique
1. Adopting the patent of cut-filter technique improves the feeling of 3-dimensional images
2. Images of mucous membrane, capillary vessels and sight bleeding points appear extremely vivid
the noise reduction function
1.adopting the digital noise reduction technique helps to eliminate electronic noise so that high-resolution images can be viewed and recorded accurately.
The processor with picture-saving function
1.the exrh2100 processor includes internal memory allowing the user to store up to 4 images.
Images can be saved during operation to be replayed later to allow diagnosis after the
procedure is over allowing faster examinations and reduced patient discomfort.
Advanced procedure for cleaning and disinfection
1. The scopes, suction valve and air/water valve are fully immersible in the cleaning fluid, smooth pipeline in the endoscope facilitates its cleaning so that every pipe is cleaned and sterilized.
2. an ergonomic leakage tester allows the easy detection of leakage thus preventing water ingress damage
total::
users 440,000 pixels to provide a high-resolution colour images
excellent full screen image
optional 21 watt xenon lamp
image freezing and storage function
special traction structure
excellent operation and insertion capability
ideal for early diagnosis and therapy
sls-2100 p light source
vep-2100 video processor
video processor:
vep-2100/vep-2100f
function:
automatic white balance, enhancement, adjusting of color, digital zoom, internal memory which can store up to 4 images, picture in picture
sls-2100 p light source
vep-2100 video processor
video processor function:
automatic white balance, enhancement, adjusting of color, digital zoom, internal memory which can store up to 4 images, picture in picture
light source
hls-2100 p/sls-2100p
type lamp color temperature pump
hls-2100p 150w halogen lamp construction with double lamps 4200k durable and quiet pump
sls-2100p 21w xenon lamp 5900k
light source
xls-180p
lamp: 180w xenon lamp
color temperature: 5900k
pump: both durable and quiet pump
gve-2100p/gve-2100x
the slender type video gastroscope gve-2100p/ gve-2100x is a better choice for children and adults whose aesophagus is narrow. Can reduce the patients’ discomfort greatly while providing accurate inspection.
　type gve-2100p gve-2100x
　optical system field of view 120° (direct)
　depth of view 3-100 mm
　tip deflection 210° (up),90° (down),100° (left),100°(right)
　distal rigid diameter ф9.0mm ф9.2mm
　insertion tube diameter ф9.0mm ф9.2mm
　working channel ф2.2mm ф2.8mm
　working length 1050mm
gve-2100b/gve-2100
the all-purpose video endoscope gve-2100b/gve-
2100 is capable of providing superior images. It is
the perfect instrument for inspection and therapy
and can vividly show capillary vessels.
　type gve-2100b gve-2100
　optical system field of view 120° (direct)
　depth of view 3-100 mm
　tip deflection 210° (up),90° (down),100° (left),100°(right)
　distal rigid diameter ф10.5mm ф9.8mm
　insertion tube diameter ф10.5mm ф9.8mm
　working channel ф2.8mm
　working length 1050mm
cve-2100tm/lm/im/sm, cve-2100tb/lb/ib/sb
provided with a 120°field of view, the therapeutic
video colonoscope can get three-dimension pictures
with the wide view and is convenient to push to
the cecum.
　type cve-2100tm/lm/im/sm cve-2100tb/lb/ib/sb
　optical system field of view 120° （direct)
　depth of view 3-100 mm
　tip deflection 180°(up),180°(down),160°(left),160°(right)
　distal rigid diameter ф12.9mm ф13.8mm
　insertion tube diameter ф12.9mm ф13.8mm
　working channel ф3.7mm ф4.2mm
　working length 1700mm/1550mm/1330mm/600mm
cve-2100tp/lp/ip/sp, cve-2100t/l/i/s
the slender video colonoscope fits very well to the
normal colon inspection. It is easy to insert and
flexible to operate. It is designed to reduce
discomfort for patients such as children or adults
whose intestine is narrow.
　type cve-2100tp/lp/ip/sp cve-2100t/l/ i/s
　optical system field of view 120° （direct)
　depth of view 3-100 mm
　tip deflection 180°(up),180°(down),160°(left),160°(right)
　distal rigid diameter ф11.0mm ф12.9mm
　insertion tube diameter ф11.0mm ф12.9mm
　working channel ф2.8mm ф3.2mm
　working length 1700mm/1550mm/1330mm/600mm
