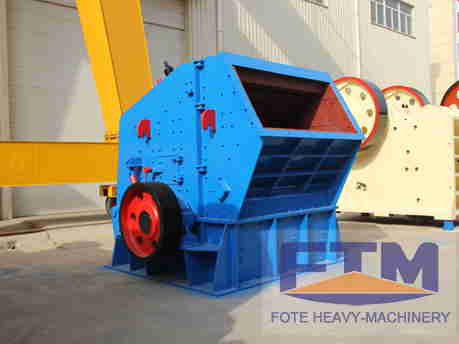

Energy Saved Professional Impact Coal Crusher

we are offering energy saved professional impact coal crusher.
overview:
1.energy-saved professional impact coal crusher crush material with strength not more than 350mpa
2.energy-saved professional impact coal crusher is used to crush coal,limestone, basalt, granite, concrete, slag, cement block, etc.
3.90% of the discharging size of granite(typical product)is less than 40 mm
4.the side length of raw material to be dealt with is up to the 700 mm.
features:
seamless link, easy repair, low cost, reliable operation.
high impact resistance, wear resistance, big impact force.
low wear rate, high comprehensive benefits.
unique equipment meet your diferent demands.
working principles:
1,when the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush.
2,then the materials will be shot back to the blow bar again for the third crush.
3,this process repeats until the materials are crushed to the required size and discharged from the lower part of the machine.
4,the size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.
technical data:
model: pf-1007,pf-1010,pf-1210,pf-1214,pf-1315,pf-1520,pf-1820,etc.
feeding size: 300~700 mm
capacity: 30~800 th
power: 37~710 kw
weight: 12~83.21 th
price: 1000~14000 usdset
payment terms: tt, lc,da, dp,etc.
delivery time: 0~20 working days after placing the order.
packaging: standard containers,bare main machines, motors and small parts are packed in wooden cases.
