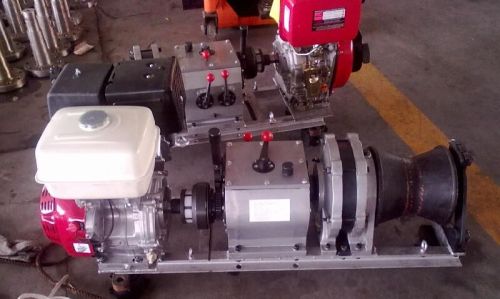

Engine Powered Diesel Winch

Engine Powered Diesel winch Application: Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up the pole.Apply to use in the wild non-transformer station, it will be convenient and agility. 5 Ton High Speed Winch,Petrol Powered Winch,Gasoline Winch is used to erecting,pulling and lifting operation in electric power line construction.  1)Characteristics: Fast speed range, multi-gears, wide application, compact, light, small volume, safe, reliable, high efficiency, etc. 2)Composition: Petrol or Diesel Engine, Clutch, Transform Gear Box, Brake, Planetary Gear Reducer Drum(groove bottom dia.160mm), equipped with Bottom Frame with Anchoring Eyes. Product No. Model Rated Load (KN) Gear Pulling Force (KN) Pulling Speed (mmin) Power (KW) Dimensions (mm) Total Weight (KG) 10048 FM-5P (Petrol) 50 Slow 9.8(1T) 24 6.7 1100*525*600 140 Middle 14.7(1.5T) 13 Middle 24.5(2.5T) 8 Fast 49(5T) 4 10049 FM-5D (Diesel) 50 Slow 9.8(1T) 24 4.8 1100*565*600 160 Middle 14.7(1.5T) 13 Middle 24.5(2.5T) 8 Fast 49(5T) 4 10050 FM-8P (Petrol) 80 Slow 9.8(1T) 28 11.76 1250*525*615 165 Middle 27.44(3T) 16 Middle 39.2(4T) 8 Fast 78.4(8T) 4 10051 FM-8D (Diesel) 80 Slow 9.8(1T) 28 8.5 1250*565*615 190 Middle 27.44(3T) 16 Middle 39.2(4T) 8 Fast 78.4(8T) 4
