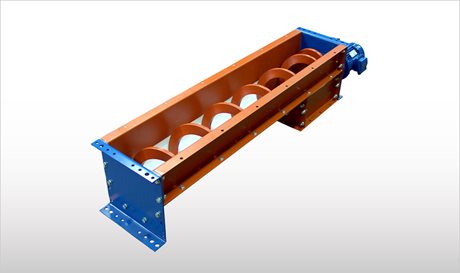

0.75 HP to 10 HP Engineered Shaftless Screw Conveyors

The SSC shaftless screw conveyor is an alternative concept to the traditional shafted screw conveyor. Shaftless screws are available from 6” to 24” diameters in single flight and 9” to 24” diameter in double flight configurations. Material is conveyed by an extra-heavy-duty shaftless screw that slides on a wear-resistant liner inside the conveyor trough housing. The U-troughs are manufactured in carbon steel or in 304 L 316 L stainless steel, including an appropriate surface treatment. The lower part of the trough has an appropriate liner installed. At one trough end there is a standard bottom discharge or open end type outlet. At the drive end the screw conveyor is equipped with an end plate holding the end bearing assembly with flanged shaft coupling with the screw. The drive unit installed suits the application.
