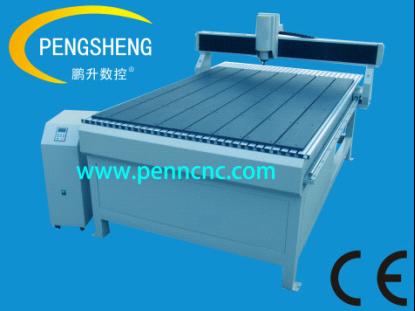

Engraving Machine

MOQ1 Piece(s)
Spindle rotating speed0-24000r/min
Table size 1400mm*2000mm
Command G code*.u00*.mmg*plt
Max speed12m/min
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Z structure Imported ball screw
Working voltage AC220V/50/60 Hz ,2PH
Drive Motor Stepper
Operating system NC Studio
X,Y structure Imported ball screw
Work-holding By clamp
Spindle power 1.5KW/2.2KW/3.0KW
Resolution 0.01mm
Z working area 80mm
Table size 1400mm*2000mm
Command G code*.u00*.mmg*plt
Max speed12m/min
Cooling mode Water cooling
Diameter of cutter 3.175-8
X.Y working area（mm） 1200*1800
Spindle rotating speed0-24000r/min

We are offering engraving machine for pvc.
1.    whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed.
2.   adopt 2.2kw china domestic made water cooling spindle.
3.    the machine adopts gantry movement,it can process any kinds of materials freely.
4.    three axes adopt imported ball screw and circle orbit,stable working,high precision and long life time.
5.    x axis is dustproof.it makes sure the steady working performance of the machine for long-term using.
6.    well compatibility:cad/cam designing software, e.g.
type3/artcam/castmate/wentai etc.
7.    has the function of forecasting process time.
8.    high precision,the curving and linear speeds are consistent.adopting excellent parts makes the fault rate to be the lowest one.
