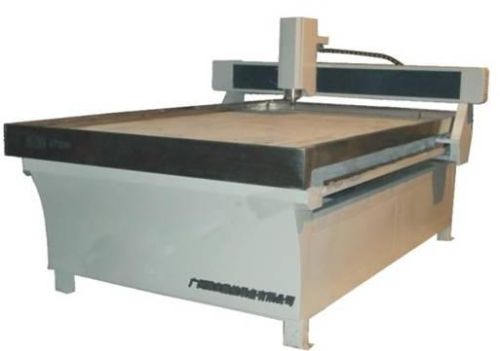

JD Engraving Machine

We are offering engraving machine for light stone.
Features:
1.bed is the whole cast structure, to ensure the body non-deformation, rigidity and strength.
2. Y-axis dual-motor drive, selected pairs to ensure smooth movement.
3. High precision screw drive, high precision, fast, powerful.
4. Round imported linear guide, high precision with long life time service.
5. Excellent mechanical and electrical design, featuring a variety of electrical accessories to minimize the failure rate to lowest rate.
6.machine is equipped with a sink and automatic water cooling system.
7. All dust and waterproof design give the full protection of the machine transmission parts.
applications:
1. Natural marble, granite, artificial stone, tombstone, milestones, tile, glass and other materials and wire three-dimensional relief carving, cutting, edge down , drilling two-dimensional sculpture.
2.engraving characters, letters, pattern, intaglio, ancient calligraphy, abrazine colored drawing, flat carving colored drawing, etc on stone, glass, depth can control optionally, to reach the artistic effect .
parameters:
model: jd-1325
table size: 1760 * 3000 * 1600mm
work schedule: 1300 * 2500 * 150mm
resolution 0.003mm /pulse
spindle 2200w/3000w(optional)
spindle motor maximum speed 24000 rev / min
largest idle speed 8.0 m / min
power 2500w/3300w
command format g code or hpgl
spindle tool ?3.175 or ?6.00
voltage ac220/50hz
power 2200w
weight 980kg
