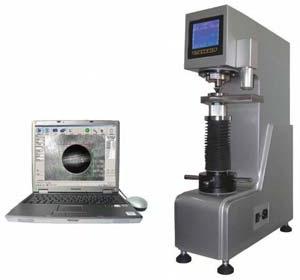

Automatic Electronic Brinell Hardness Tester, For Industrial Use, Temperature Capacity : Medium Temperature

We are actively functioning as a trustworthy Manufacturer, Exporter and Supplier of Electronic Brinell Hardness Tester from Delhi. Precision engineered, the Hardness Tester we provide is the preferred choice among the buyers across different countries of the world. Buyers are free to place retail as well as bulk orders. We provide them in high-grade packaging and ensure on time delivery. Look for us to get the most affordable prices.
More Information About EHB-3000A/3000E Automatic / Electronic Brinell Hardness Tester
The EHB-3000A/3000E Brinell hardness testing creates the largest indentation comparing all other hardness testing methods. It is able to reflect the comprehensive features of the material, and is unaffected by the microstructure and inhomogeneous of the specimen. So it is with high precision and widely used in industry such as metallurgy, forging, casting, unhardened steel and nonferrous metals, as well as in the laboratories, universities , and scientific research institutes.
EHB-3000A/3000E Tester conforms to :

• ISO6506 Metallic Materials-Brinell Hardness Test
• ASTM E-10 Test Method for Brinell Hardness of Metallic Materials

Specification :

• Innovative and closed-loop technology. The tester incorporates the latest load cell technology. The test load is applied via a closed loop control unit with a load cell, a DC motor and an electronic measurement and control unit.
• The result is highly accurate, measurements at all test loads up to 0.5%. The common load overshoots or undershoots as known from traditional dead weight, or open-loop, systems is eliminated.
• The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations. The whole weight of the tester is 50% less than the traditional dead weights type tester.
• Test load selection by keyboard and LCD screen. No need of handling heavy weights or cleaning the messy oil.
•  Fully automatic test cycles. The hardness Tester features a fully automatic test cycle, load application, holding and unloading which is performed fully automatically. This greatly improves reproducibility of test results, since operator influence is eliminated.
• Selectable dwell times by screen. The indenter, load, and other test information are shown clearly on the large LCD screen.
• The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen. Equipped with the special Brinell indention measurement system which can measure the Brinell indention accurately, quickly, reliably. It is a new measuring method by using CCD camera to capture the indention image, instead of reading diameter from optical microscope by operator then calculating the test value.
• The EHB-3000A tester can connect any PC with USB port and run the SPC software, then the special software supplying simplest operation as following:
• Both single testing and batch testing modes are available. Tolerance setting, distinguishing and alarming statistics values such as Maximum, Minimum, Average, R and S are available.
• Convert test result to other scales, such as HRC, HRB, HRA, HV, ób. All test results and indention images are saved automatically. Test report created in Microsoft EXCEL format, can be edited, copied or printed as you will update software freely.
