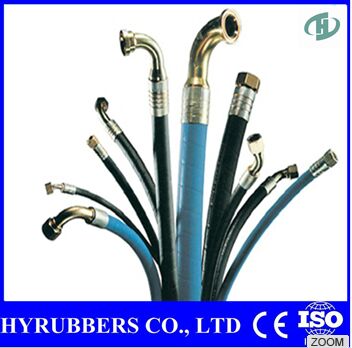

Rubber Enparker Hydraulic Hose, Brand Name : Hyrubbers

We are offering enparker hydraulic hose factory produced hydraulic hose, r1 r2 hydraulic hoserubber hydraulic hose
factory produced hydraulic hose, high quality r1 r2 hydraulic hose
description:
the hose consists of an inner tube of oil-resistant synthetic rubber, one wire braids reinforcement, and an oil- and weather-resistant synthetic rubber cover.
applications:
mining, metallurgy, petroleum, construction machinery and chemical industry
specifications:
construction:
the hose consists of an inner tube of oil-resistant synthetic rubber, one wire braids reinforcement, and an oil- and weather-resistant synthetic rubber cover.
Temperature range : -40 â°c to +100 â°c
products:
size i.d o.d w.p b.p min b.r weight length
mm inch min max max mpa psi mpa psi mm kgm metres
5 316" 4.6 5.4 14.1 41.5 6020 165 23295 90 0.32 50~100
6.3 14" 6.2 7.0 15.7 40 5800 160 23200 100 0.36 50~100
8 516" 7.7 8.5 17.3 35 5075 140 20300 115 0.45 50~100
10 38" 9.3 10.1 19.7 33 4785 132 19140 130 0.54 50~100
12.5 12" 12.3 13.5 23.0 27.5 3990 110 15950 180 0.68 50~100
16 58" 15.5 16.7 26.2 25 3625 100 14500 200 0.80 50~100
19 34" 18.6 19.8 30.1 21.5 3120 85 12325 240 0.94 50~100
25 1" 25.0 26.4 39.9 16.5 2390 65 9425 300 1.35 50
31.5 1-14" 31.4 33.0 49.5 12.5 1810 50 7250 420 2.15 20~40
38 1-12" 37.7 39.3 55.9 9 1305 36 5220 500 2.65 20~40
51 2" 50.4 52.0 68.6 8 1160 32 4640 630 3.42 20~40
