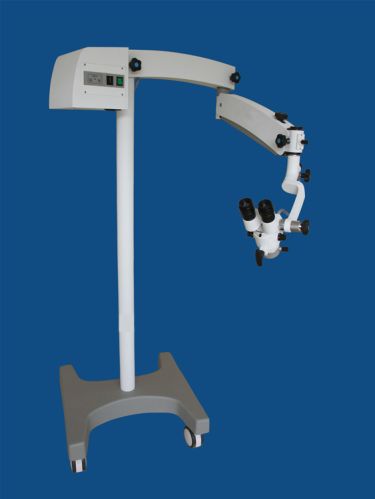

Contact SupplierWe are offering ent surgery microscope.
specifications
microscope
binoculars straight f'=160 mm
objective f'=300 mm
eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
diopter adjustment -5d to + 5d
magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
total magnifications 2.8x, 4x, 7x, 11.5x, 17x
visual field 80 mm to 12.5 mm
interpupillary distance 55mm to 75 mm
focusing manual
working distance 295 mm
illumination
type coaxial illumination by optical light-guide system
cold light source halogen lamp, 15v150w, twin bulbs
illumination control continuous by switch button on panel or brightness control knob
field of illumination 55 mm
power supply ac 110v60hz 220v50hz c 220w
light intensity 50, 000 lux
filter blue, green
arm, stand
type pantographic arm, floor stand
range 1250 mm( 1st arm 500 mm, 2nd arm 550mm, 3rd arm 200 mm)
rotation angle 360 degree
elevation stroke 400mm
base size 600 mm x 600 mm
weight 95kgs
accessories
binoculars 0-180 degree inclinable binoculars f'=160 mm
objective f'=250 mm, 350 mm, 400 mm
beamsplitter dismountable
adaptor for ccd camera f'=65 mm
integrated bs and ad
ccd camera
