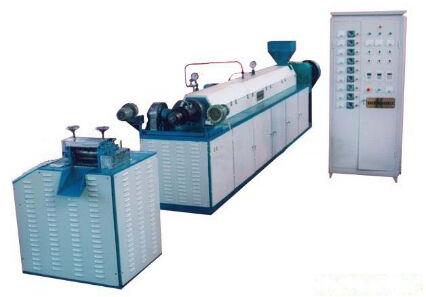

EPE/pe Foam Net Extrusion Machine, Brand Name : JINLIDA

Epepe foam net extrusion machine
the epe foam machine can made foaming sheet�foaming tube�foaming bar�foaming angle profile(l�u type, etc) �foaming round bar�foaming lath, etc, which is only in the difference of accessory equipment and automatic controlling, the foaming part is nearly same.
Technical parameters of epe foam net extrusion machine
model screw dia. (mm) max. Width (mm) sheet thickness (mm) power
(kw) productivity (kgh) foam rate
efp-75 75 1600 0.3-3 55 25-50 30-40
efp-90 90 1600~2000 0.3-5 75 35-80
efp-105 105 1600~2500 0.3-6 95 50-120
efp-120 120 1600~3000 1-8 115 60-180
efp-135 135 1600~3000 1-10 150 70-220
efp-150 150 1600~3000 2-12 220 90-300
efp170 170 1600~3000 2-14 320 100-450
efp200 200 1600~3000 3-16 400 160-600
