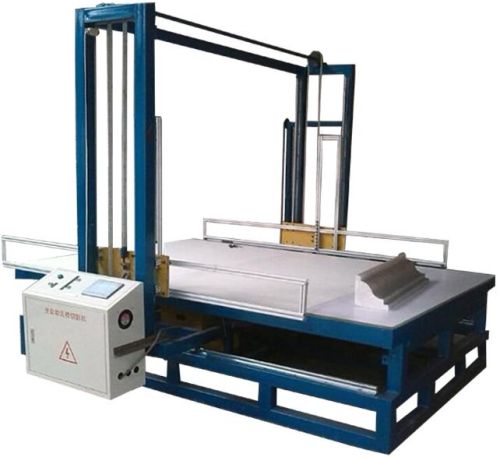

Contact SupplierWe are offering eps corrugated cutting machine.
Main features:
--- this cnc eps corrugated cutting machine is a 3d cutting machine integrated with level cutting,groove cutting and socket cutting;
--- equipped with corrugated cutting device, many shapes of slot could be cut, for example, coattail sheet, t type slot, arc groove, wave shape groove;
--- corrugated cutting device adopts single chip control system. The cutting parameters are inputted into the control system. And based on these inputted cutting parameters, the stepper motor starts cutting.
--- easy to operate, high precision, low waste of eps blocks.
--- made by rectangular steel pipe with suitable structure and easy to repair;
--- cut by hot wire with stable running .product surface is smooth.
--- we also can make the machines by special requirements.
technical data:
item unit mode cmw3000 cmw6000
cutting length mm 3000 8000
cutting width mm 1200 1200
cutting height mm 600 600
cutting speed mmin 0.5-1 0.5-1
hot wire number(max) piece 40+5+1 40+5+1
minimum cutting thickness mm 10 10
power(power) kw 16 16
supply voltage vhz 38050 38050
dimensions mm 5500*1600*2500 10500*1600*2500
