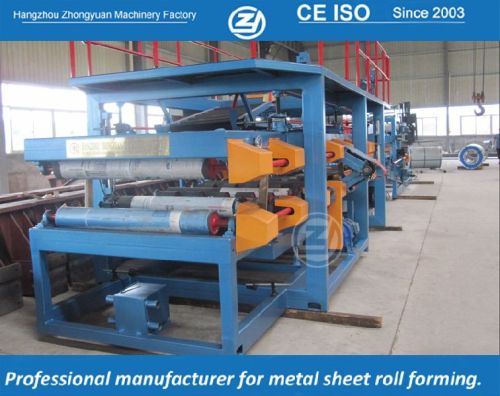

EPS Sandwich Panel Production Machine

Esp sandwich panel production machine could make the polystyrene core sandwich panel. This sandwich panel product line adopts plc and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam material.
Eps sandwich panel production machine suppliers ,hot sale
technical data of eps sandwich panel production machine
eps sandwich panel spec
panel thickness mini thickness
50mm (wall panel)
max. Thickness 200mm(exclude corrugated sandwich panel)
steel sheet spec
thickness 0.4-0.7mm color steel sheet
width 1250mm (we can design according to buyer’s requirement)
max. Coil weight 5 tons
inner dia. Of coil 508mm
whole line spec
whole line dimension about 35000mm × 2500mm × 3000mm
total weight about 18t
working speed about 5-7mmin (adjustable)
the output 1500m2-2000m28hour
control mode plc and converter
total power about 28kw (as per final designing)
power required 380v3phase50hz or as per customer's requirement.
Air pressure 0.7mpa (for buyer to prepare)
suitable working temperature about 25 degree
consecutive laminating body makes eps blocks stick to up and down sheets
product application of eps sandwich panel production machine
due to its simple operation, this forming machine is widely used in the construction of steel structure enclosures, warehouse, workshop, cold storages, and mobile buildings.
Sandwich panel production line, pu sandwich panel production machine, eps sandwich panel production machine factory
in order to satisfy various customer requirements, we design and manufacture pu sandwich panel lines in different specs, models and configurations.
